Ships within 25 days
View
View
View
View
| Outer ring type | Flat |
| Shield Shape | Open type |
| Race ring shape | Angular Contact Ball Bearing |
| Material | High Carbon Steel |
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Angular Contact Ball Bearing |
Material |
High Carbon Steel |
Outer Diameter D (Φmm) |
125 |
Rolling element material |
High Carbon Chromium Bearing Steel |
Contact Angle |
30° |
JIS grade |
0 |
Basic static load rating Cor (N) |
63500 |
Width B (mm) |
24 |
Basic dynamic load rating Cr (N) |
76500 |
Monotaro ID |
340697 |
Type of Product |

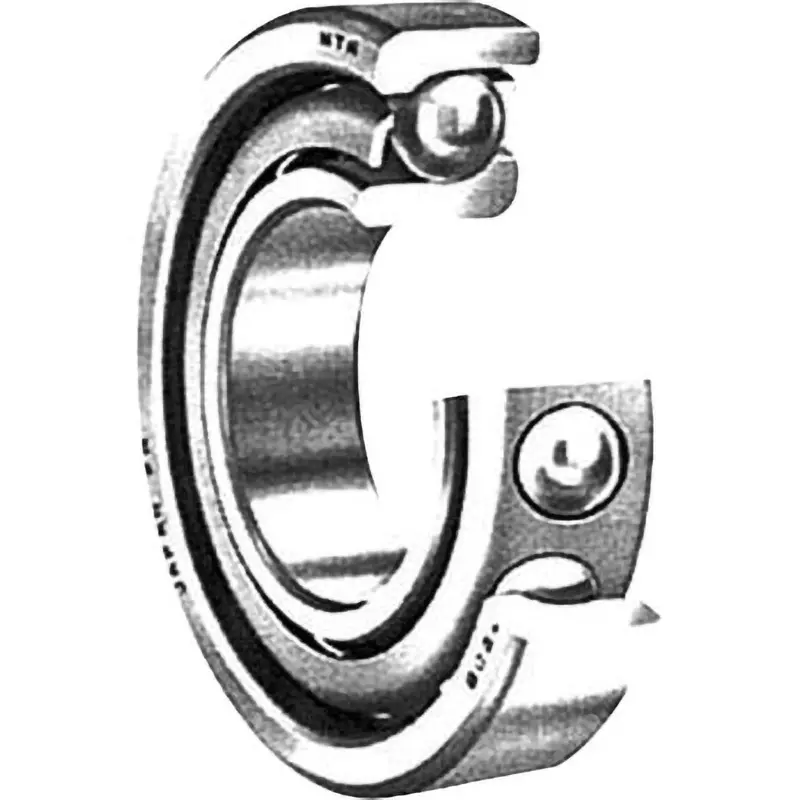

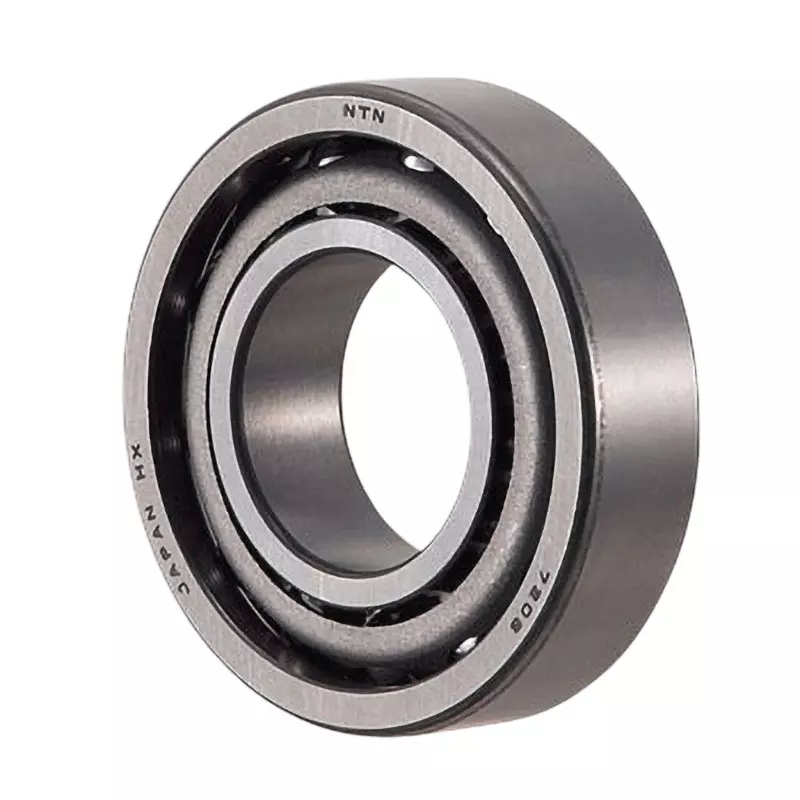

Angular Contact Ball Bearing No. 7200 Series |
Model No |
7214 |
Load direction |
Radial |
Working Point a (mm) |
40 |
Chamfer Dimension r1 (mm) |
1 (minimum) |
Mass (Kg) |
1 |
Reference mass (g) |
1090 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Chamfer Dimension r (mm) |
1.5 (minimum) |
Inner Diameter (mm) |
70 |
Permissible Speed (min-1) Grease Lubrication |
5700 |
Trusco Part No. |
819-6228 |
