Ships within 25 days
View
View
View
View
| Outer ring type | Flat |
| Shield Shape | Open type |
| Race ring shape | Angular Contact Ball Bearing |
| Material | High Carbon Steel |
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Angular Contact Ball Bearing |
Material |
High Carbon Steel |
Outer Diameter D (Φmm) |
62 |
Rolling element material |
High Carbon Chromium Bearing Steel |
Contact Angle |
15° |
JIS grade |
4 |
Width B (mm) |
34 |
Monotaro ID |
8815554 |
Type of Product |

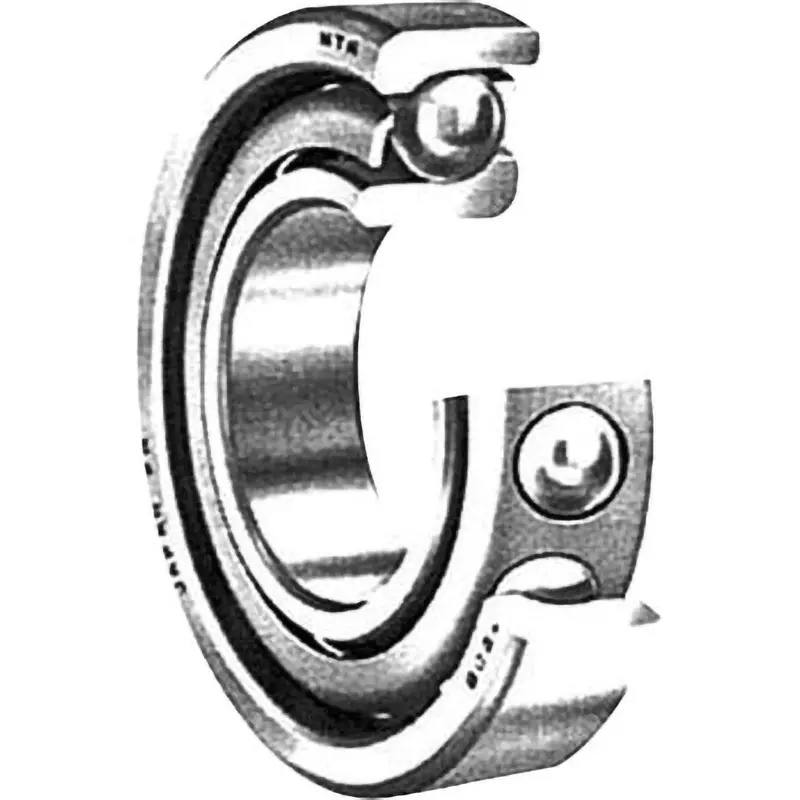

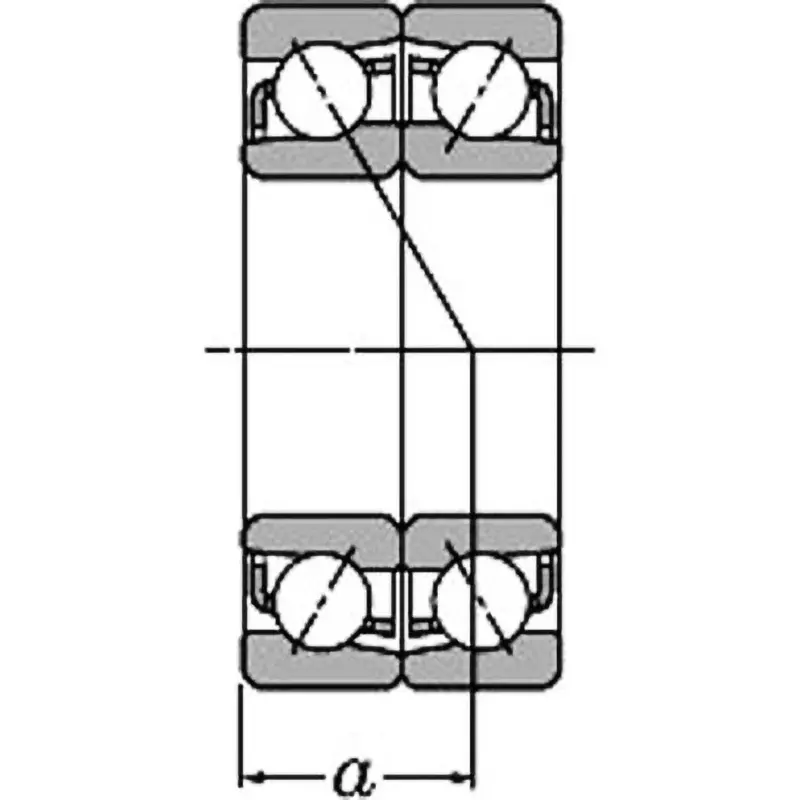

Combination Angular Contact Ball Bearings 7300 Series DF |
Model No |
7305CDF/GNP4 |
Load direction |
Radial |
Symbol of Internal Clearance Preload |
GN |
Chamfer Dimension r1 (mm) |
0.6 |
Reference mass (g) |
460 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Chamfer Dimension r (mm) |
1.1000000000000001 |
Inner Diameter (mm) |
25 |
