| Outer ring type | Flat |
| Shield Shape | Open type |
| Race ring shape | Angular Contact Ball Bearing |
| Material | High Carbon Steel |
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Angular Contact Ball Bearing |
Material |
High Carbon Steel |
Outer Diameter D (Φmm) |
140 |
Rolling element material |
High Carbon Chromium Bearing Steel |
Contact Angle |
30° |
JIS grade |
0 |
Basic static load rating Cor (N) |
164000 |
Width B (mm) |
33 |
Basic dynamic load rating Cr (N) |
180000 |
Monotaro ID |
8816997 |
Type of Product |

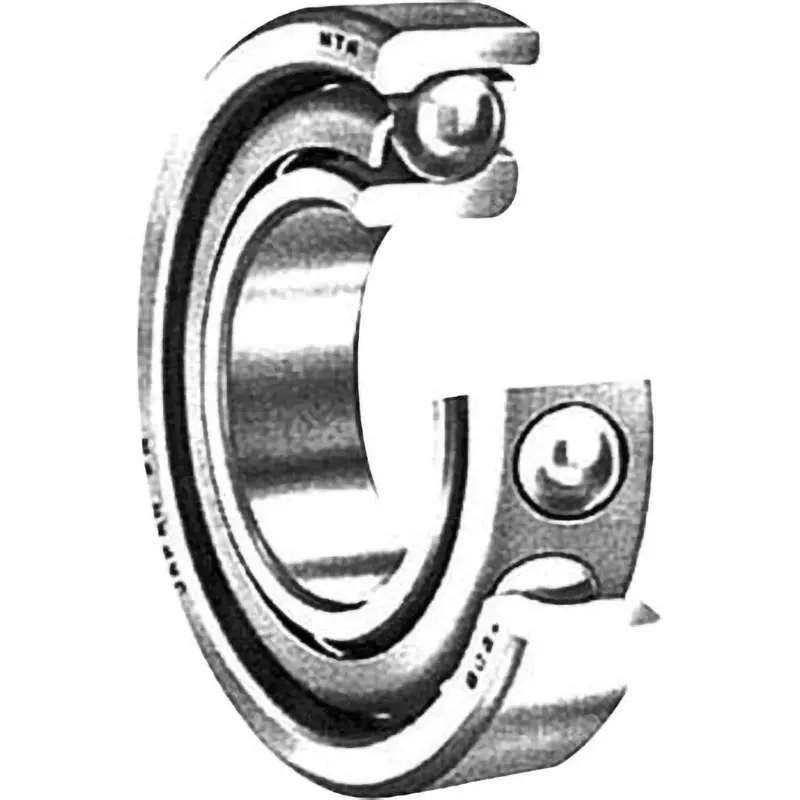

Matched Angular Contact Ball Bearing7300 Series DB |
Model No |
7313DBC3 |
Load direction |
Radial |
Symbol of Internal Clearance Preload |
C3 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Inner Diameter (mm) |
65 |
Permissible Speed (min-1) Oil Lubrication |
5800 |
Permissible Speed (min-1) Grease Lubrication |
4400 |
Pack of |
1 Set |
