| Outer ring type | Flat |
| Shield Shape | Open type |
| Race ring shape | Angular Contact Ball Bearing |
| Material | High Carbon Steel |
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Angular Contact Ball Bearing |
Material |
High Carbon Steel |
Outer Diameter D (Φmm) |
90 |
Rolling element material |
High Carbon Chromium Bearing Steel |
Contact Angle |
30° |
JIS grade |
0 |
Basic static load rating Cor (N) |
63000 |
Width B (mm) |
20 |
Basic dynamic load rating Cr (N) |
67000 |
Monotaro ID |
8190217 |
Type of Product |

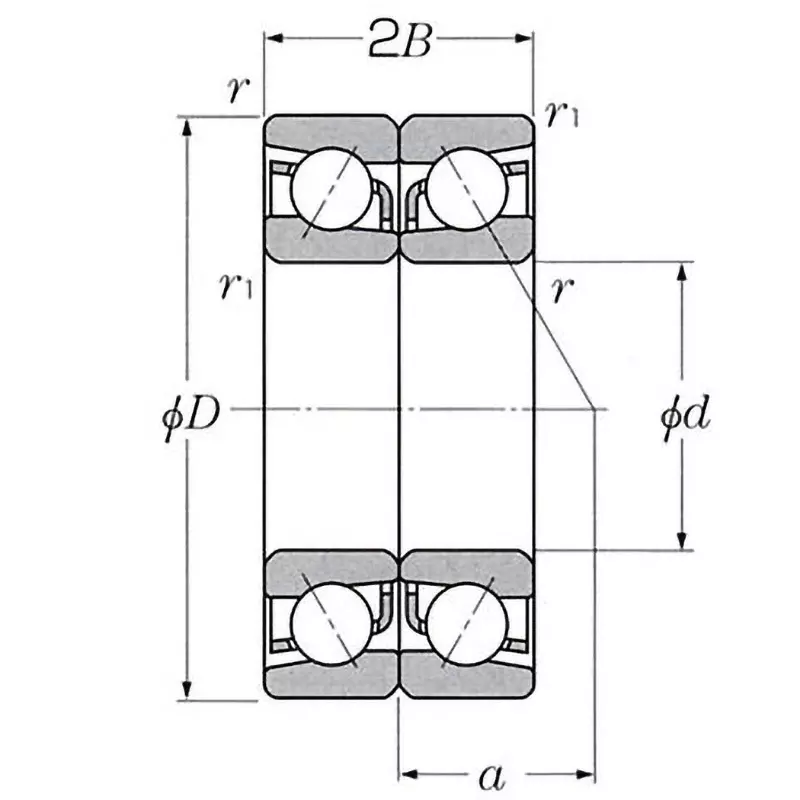

Matched Angular Contact Ball Bearing 7200 Series DB |
Model No |
7210DB |
Load direction |
Radial |
Width 2B (mm) |
40 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Inner Diameter (mm) |
50 |
Permissible Speed (min-1) Oil Lubrication |
8300 |
Permissible Speed (min-1) Grease Lubrication |
6300 |
