| Outer ring type | Flat |
| Shield Shape | Open type |
| Race ring shape | Angular Contact Ball Bearing |
| Material | High Carbon Steel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Angular Contact Ball Bearing |
Material |
High Carbon Steel |
Outer Diameter D (Φmm) |
80 |
Rolling element material |
High Carbon Chromium Bearing Steel |
Contact Angle |
40° |
JIS grade |
0 |
Basic static load rating Cor (N) |
48500 |
Width B (mm) |
42 |
Basic dynamic load rating Cr (N) |
59500 |
Monotaro ID |
8815843 |
Type of Product |

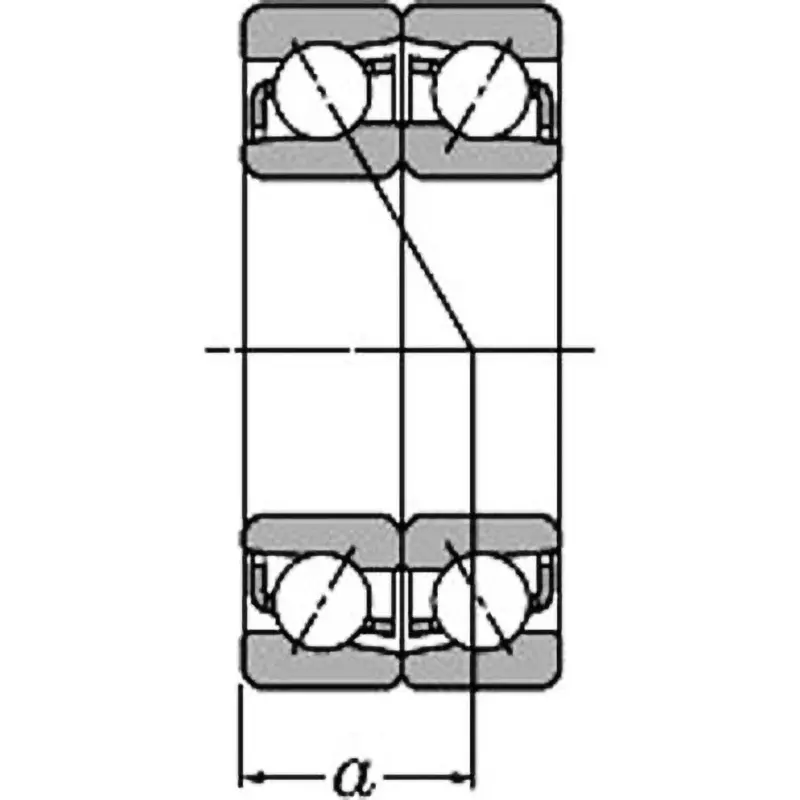

Combination Angular Contact Ball Bearings 7300 Series DF |
Model No |
7307BDF |
Load direction |
Radial |
Chamfer Dimension r1 (mm) |
1 |
Reference mass (g) |
938 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Chamfer Dimension r (mm) |
1.5 |
Inner Diameter (mm) |
35 |
Permissible Speed (min-1) Oil Lubrication |
9000 |
Permissible Speed (min-1) Grease Lubrication |
6800 |
