Ships within 8 days
View
View
View
View
| Bore Diameter (d) | 17 mm |
| Weight | 0.060 Kg |
| Bore Type | Round |
| Cage Type | Pressed |
Bore Diameter (d) |
17 mm |
Weight |
0.060 Kg |
Bore Type |
Round |
Cage Type |
Pressed |
Material |
High Carbon Chrome Steel |
Dynamic Load Rating |
12.00 kN |
Contact Angle |
30° |
Static Load Rating |
6.60 kN |
Width (B) |
12 mm |
Series |
7200 Series |
Type of Product |
Angular Contact Ball Bearing |
Model No |
7203 |
Limiting Speed (Grease) |
19,000 RPM |
Enclosure |
Open |
Cage Material |
Steel |
Limiting Speed (Oil) |
26,000 RPM |
Precision |
ISO Class 0 |
Seal Type |
Open |
Ball Material |
Steel |
Country of Origin |
India |
Bearing Type |
Single Row Angular Contact Ball Bearing |
Name of Manufacturer/Packer/Importer |
Mechanical Solutions |
Operating Temperature Range |
-40 ºC to 120 ºC |

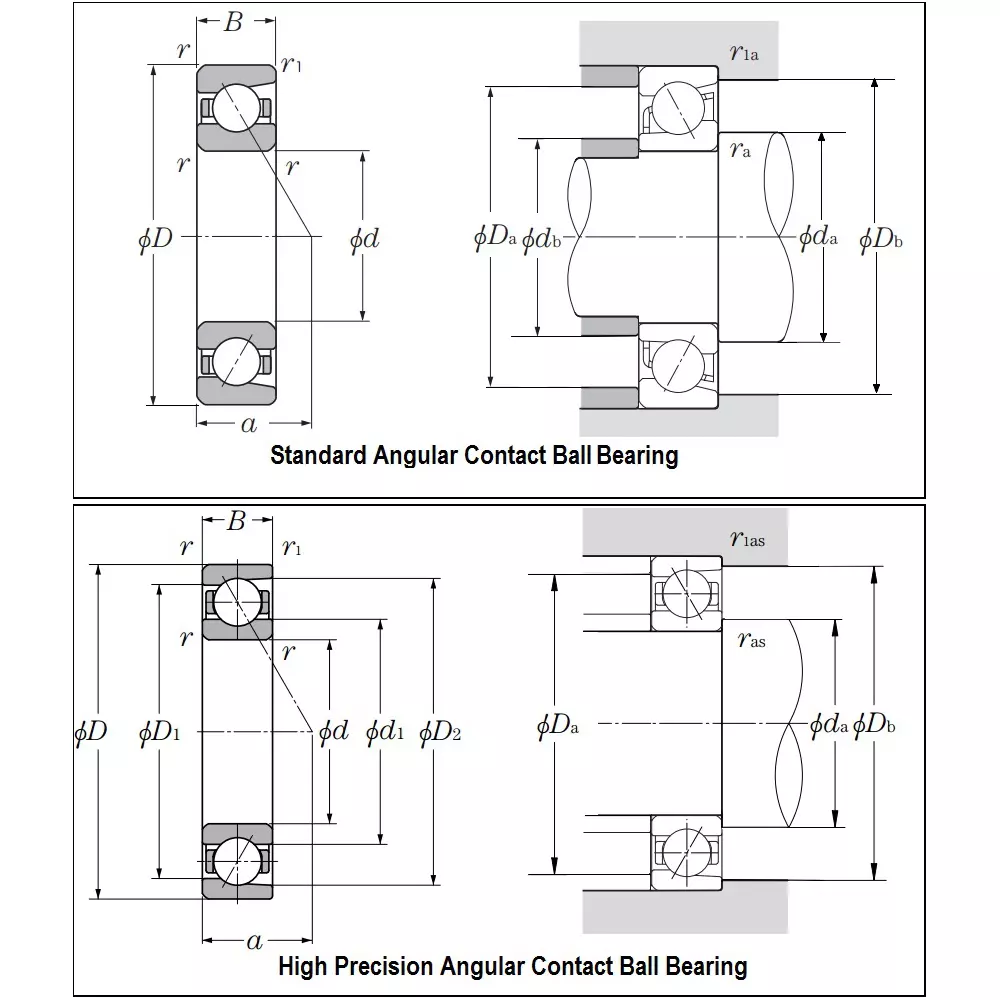

Outside Diameter (D) |
40 mm |
Minimum Chamfer Radius (r) |
0.6 mm |
Minimum Chamfer Radius (r1) |
0.3 mm |
Configuration |
Single Row |
Radial Internal Clearance |
CN |
Minimum Shaft Shoulder Diameter (da min) |
21.5 mm |
Maximum Fillet Radius (ra max) |
0.6 mm |
Maximum Fillet Radius (r1a max) |
0.3 mm |
Maximum Housing Shoulder Diameter (Da max) |
35.5 mm |
Minimum Shaft Shoulder Diameter (db min) |
19.5 mm |
Maximum Housing Shoulder Diameter (Db max) |
37.5 mm |
Load Center (a) |
14.5 mm |
