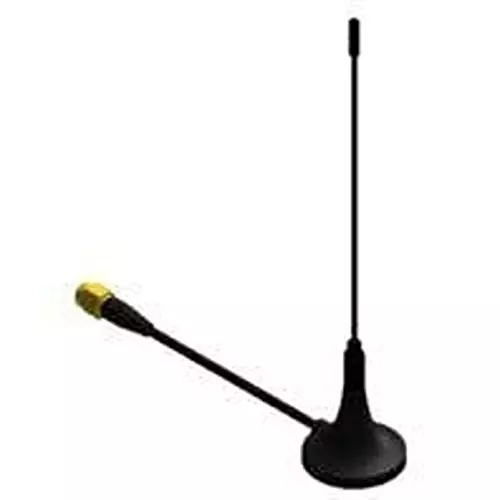

| Type of Product | Indoor Antenna |
| Impedance | 50 Ohms |
| Type | Passive Antenna |
| Style | Straight with Base |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Indoor Antenna |
Impedance |
50 Ohms |
Type |
Passive Antenna |
Style |
Straight with Base |
Length |
153.3 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Abracon |
Ordering ID |
815-AEACAD153029S433 |
Manufacturer Part Number |
AEACAD153029-S433 |
Maximum Frequency |
960 MHz |
VSWR |
4.5 |
Minimum Frequency |
433 MHz |
Gain (Db) |
3 dBi |
Centre Frequency |
696.5 MHz |
Antenna Connector |
SMA Male |
Minimum Operating Temperature |
-40°C |
Maximum Operating Temperature |
+85°C |
RoHS Compliant |
Yes |
Product Type |
Cellular Antennas - GSM, LTE, 2G/3G/4G/5G |
Data Sheet |
https://www.mouser.in/datasheet/3/184/1/AEACAD153029_S433.pdf |
Number of Bands |
1 Band |
Termination Style |
Connector |
Mounting Style |
Magnetic Mount |
Cable Type |
3 M RG174 |
Protocol - Cellular, NBIoT, LTE |
Cellular (NBIoT, LTE) |
Mechanical Style |
Whip |
Application |
ISM Applications, M2M, Remote Technology/Monitoring, Network Devices, Smart Buildings, Smart City, Agriculture/Environment, Consumer Tracking |
Protocol - Sub GHz |
IoT, ISM |
Protocol - WiFi - 802.11 |
LPWA, LoRa, SigFox |
Packaging Type |
Bulk |
