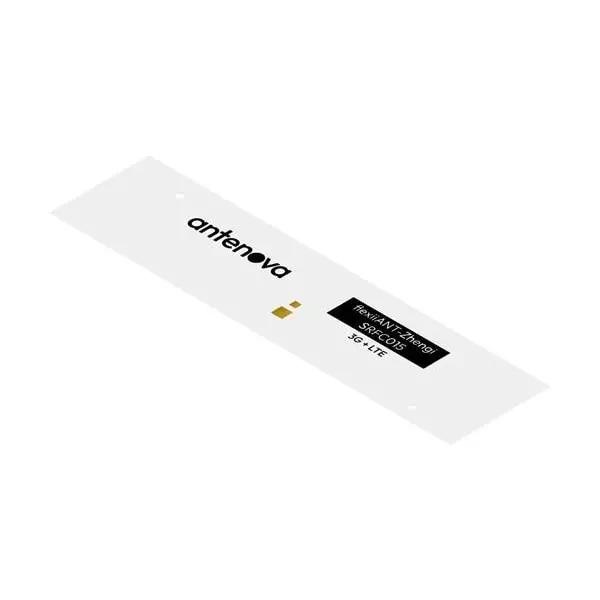

| Type of Product | PCB Antenna |
| Impedance | 50 Ohms |
| Type | Passive Antenna |
| Style | T-Bar Flex |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Antenna |
Impedance |
50 Ohms |
Type |
Passive Antenna |
Style |
T-Bar Flex |
Height |
0.15 mm |
Length |
80 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Antenova |
Ordering ID |
237-SRFC015-200 |
Manufacturer Part Number |
SRFC015-200 |
Maximum Frequency |
2.69 GHz |
VSWR |
3.30 :1, 2.90 :1, 2.10 :1, 3.20 :1, 2.90 :1 |
Minimum Frequency |
824 MHz |
Gain (Db) |
- 2.50 dBi, - 1.50 dBi, - 2.50 dBi, - 2.50 dBi, - 1.50 dBi |
Centre Frequency |
892 MHz, 1.85 GHz, 2.14 GHz |
Antenna Connector |
IPEX MHF |
Minimum Operating Temperature |
-40°C |
Maximum Operating Temperature |
+85°C |
Series |
Zhengi |
RoHS Compliant |
Yes |
Product Type |
Cellular Antennas - GSM, LTE, 2G/3G/4G/5G |
Data Sheet |
https://www.mouser.in/datasheet/3/63/1/Zhengi_SRFC015_PS_1.6.pdf |
Number of Bands |
6 Band |
Width |
20 mm |
Termination Style |
Connector |
Mounting Style |
Adhesive Mount |
Cable Type |
200 mm RF1.13 |
Protocol - Cellular, NBIoT, LTE |
3G/4G, Cellular (NBIoT, LTE), GSM, DCS, PCS, WCDMA |
Mechanical Style |
PCB Trace |
Application |
Smart Meters, Femto / Pico base stations, Tracker Devices, Remote Monitoring, M2M, POS Terminals |
Packaging Type |
Bulk |
