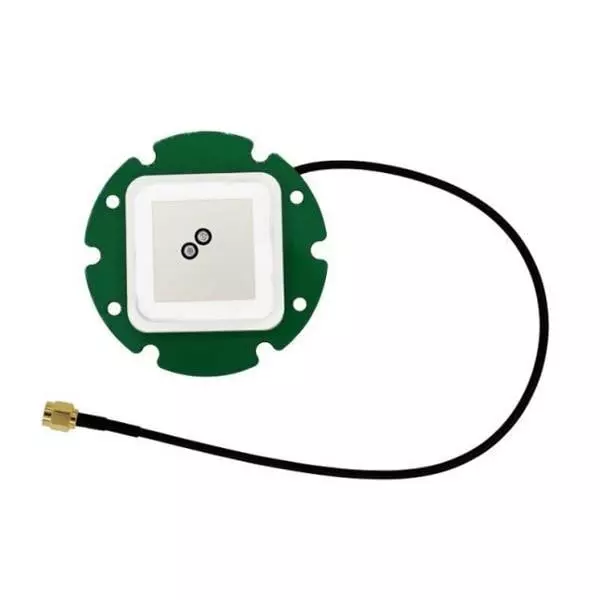

| Type of Product | PCB Antenna |
| Impedance | 50 Ohms |
| Type | Passive Antenna |
| Style | Patch |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Antenna |
Impedance |
50 Ohms |
Type |
Passive Antenna |
Style |
Patch |
Height |
27 mm |
Length |
66.2 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
ArduSimple |
Ordering ID |
780-2BOEML1L202SMA00 |
Manufacturer Part Number |
AS-ANT2B-OEM-L1L2-02SMA-00 |
Maximum Frequency |
1.6106 GHz |
VSWR |
8.4027777777777785E-2 |
Minimum Frequency |
1.2176 GHz |
Gain (Db) |
0 dBi, 3 dBi, 1.5 dBi |
Centre Frequency |
1.2276 GHz, 1.57542 GHz, 1.6026 GHz |
Antenna Connector |
SMA Male |
Minimum Operating Temperature |
-40°C |
Maximum Operating Temperature |
+85°C |
Series |
simpleANT2B |
RoHS Compliant |
Yes |
Product Type |
GNSS Antennas - GPS, GLONASS, Galileo, Beidou |
Data Sheet |
https://www.mouser.in/datasheet/3/3720/1/Datasheet_AS_ANT2B_OEM_L1L2_02SMA_00_Antenna_for_GNSS_Multiband_with_cable__OEM_.pdf |
Number of Bands |
3 Band |
Width |
47.7 mm |
Termination Style |
Connector |
Mounting Style |
PCB Mount |
Cable Type |
246 mm RG174 |
Protocol - GPS, GLONASS |
GNSS |
Mechanical Style |
PCB Trace |
Application |
GNSS |
Packaging Type |
Bulk |
