Ships within 45 days
View
View
View
View

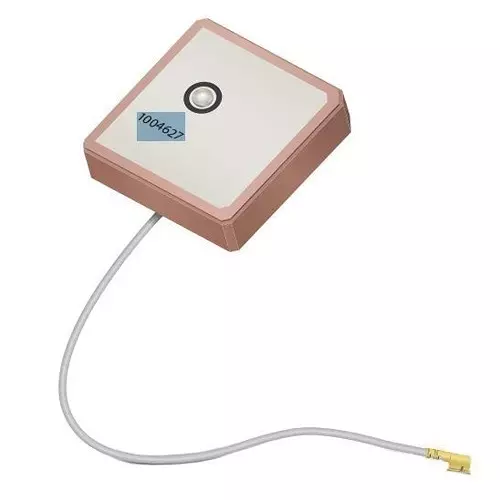

| Type of Product | PCB Antenna |
| Impedance | 50 Ohms |
| Type | Passive Antenna |
| Style | Ceramic |
Type of Product |
PCB Antenna |
Impedance |
50 Ohms |
Type |
Passive Antenna |
Style |
Ceramic |
Height |
5.3 mm |
Length |
25 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
KYOCERA AVX |
Ordering ID |
581-1004627 |
Manufacturer Part Number |
1004627 |
Maximum Frequency |
1.602 GHz |
VSWR |
2.0:1, 3.0:1 |
Minimum Frequency |
1.575 GHz |
Gain (Db) |
3.7 dBi, 3 dBi |
Centre Frequency |
1.575 GHz, 1.602 GHz |
Antenna Connector |
IPEX MHF3 |
Minimum Operating Temperature |
-40°C |
Maximum Operating Temperature |
+85°C |
Series |
1004627 |
RoHS Compliant |
Yes |
Product Type |
GNSS Antennas - GPS, GLONASS, Galileo, Beidou |
Data Sheet |
https://datasheets.kyocera-avx.com/ethertronics/AVX-E_1004627.pdf |
Number of Bands |
2 Band |
Width |
25 mm |
Termination Style |
Pin |
Mounting Style |
PCB Mount |
Cable Type |
72 mm RF0.81 |
Protocol - GPS, GLONASS |
GLONASS, GPS |
Mechanical Style |
Patch |
Application |
Embedded Design, POS, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II |
Packaging Type |
Waffle |
