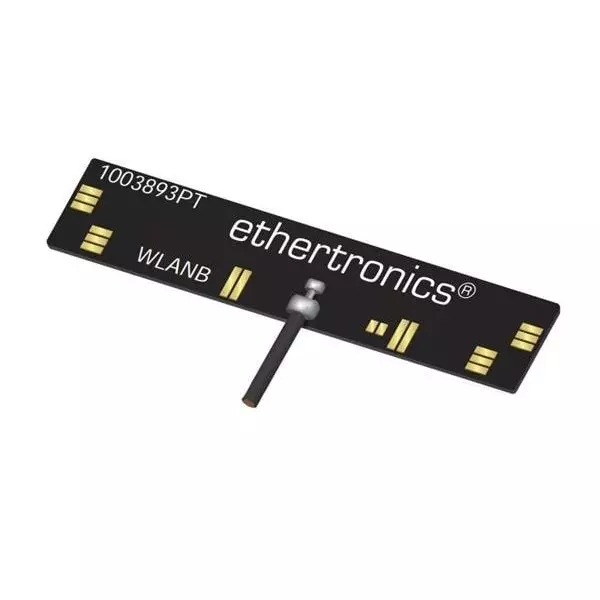

| Type of Product | PCB Antenna |
| Impedance | 50 Ohms |
| Type | Embedded |
| Style | T-Bar Flex |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Antenna |
Impedance |
50 Ohms |
Type |
Embedded |
Style |
T-Bar Flex |
Height |
0.12 mm |
Length |
40 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
KYOCERA AVX |
Ordering ID |
581-1003893FT-AA1200 |
Manufacturer Part Number |
1003893FT-AA10L0200 |
Maximum Frequency |
2.485 GHz |
VSWR |
1.5:1 |
Minimum Frequency |
2.4 GHz |
Gain (Db) |
3.3 dBi |
Centre Frequency |
2.4 GHz |
Antenna Connector |
U.FL |
Series |
1003893FT |
RoHS Compliant |
Yes |
Product Type |
2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee |
Data Sheet |
https://datasheets.kyocera-avx.com/ethertronics/AVX-E_1003893FT.pdf |
Number of Bands |
1 Band |
Width |
8 mm |
Termination Style |
Connector |
Mounting Style |
Adhesive Mount |
Power Rating |
500 mW |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth |
Cable Type |
100 mm RF1.13 |
Mechanical Style |
PCB Trace |
Application |
Access Point, Cellular, Embedded Design, Gateway, Handheld, Healthcare, Headsets, Industrial Devices, M2M, OBD-II, Smart Grid, Tablets, Telematics, Tracking |
Protocol - WiFi - 802.11 |
WiFi, WLAN |
Packaging Type |
Bulk |
Protocol - ANT, Thread, Zigbee - 802.15.4 |
802.15.4 (ANT, Thread, Zigbee) |
