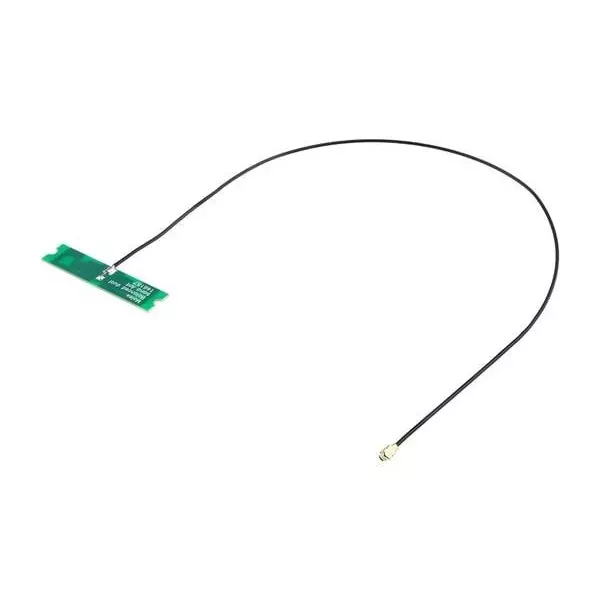

| Type of Product | PCB Antenna |
| Impedance | 50 Ohms |
| Type | Passive Antenna |
| Style | T-Bar |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Antenna |
Impedance |
50 Ohms |
Type |
Passive Antenna |
Style |
T-Bar |
Height |
0.7 mm |
Length |
40.95 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Molex |
Ordering ID |
538-146187-0300 |
Manufacturer Part Number |
146187-0300 |
Maximum Frequency |
5.85 GHz |
Minimum Frequency |
2.4 GHz |
Gain (Db) |
3.5 dBi |
Centre Frequency |
2.45 GHz, 5.5 GHz |
Antenna Connector |
IPEX MHF |
Series |
146187 |
RoHS Compliant |
Yes |
Product Type |
2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee |
Data Sheet |
https://www.molex.com/en-us/products/part-detail/1461870300?display=pdf |
Number of Bands |
2 Band |
Width |
9 mm |
Termination Style |
Connector |
Mounting Style |
Screw Mount |
Power Rating |
2 W |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth, BLE |
Cable Type |
300 mm Coax |
Protocol - GPS, GLONASS |
GLONASS, GPS |
Mechanical Style |
PCB Trace |
Application |
Industrial Use |
Protocol - Sub GHz |
ISM, U-NII |
Protocol - WiFi - 802.11 |
802.11, WiFi, WLAN |
Protocol - ANT, Thread, Zigbee - 802.15.4 |
802.15.4 (ANT, Thread, Zigbee), 802.16 |
