| Type of Product | PCB Antennas |
| Impedance | 50 Ohms |
| Type | Passive Antenna |
| Style | T-Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Antennas |
Impedance |
50 Ohms |
Type |
Passive Antenna |
Style |
T-Panel |
Height |
1.2 mm |
Length |
40 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |

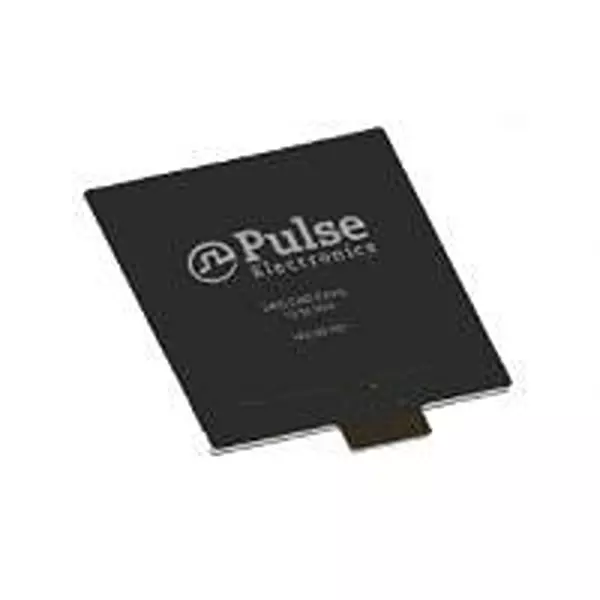

Pulse Electronics |
Ordering ID |
673-W5100 |
Manufacturer Part Number |
W5100 |
Maximum Frequency |
2.4 GHz |
VSWR |
0.12569444444444444 |
Minimum Frequency |
13.56 MHz |
Gain (Db) |
- 1 dBi |
Centre Frequency |
13.56 MHz, 2.45 GHz |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
RoHS Compliant |
Yes |
Product Type |
Multiprotocol Antennas |
Data Sheet |
https://www.mouser.in/datasheet/3/203/1/W5100.pdf |
Number of Bands |
2 Band |
Width |
40 mm |
Termination Style |
SMD/SMT |
Mounting Style |
Adhesive Mount |
Protocol - ANT |
802.15.4 (ANT, Thread, Zigbee) |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth, BLE |
Mechanical Style |
PCB Trace |
Application |
Wireless Application, Pairing, Sharing |
Protocol - Sub GHz |
NFC |
Protocol - WiFi - 802.11 |
WiFi |
