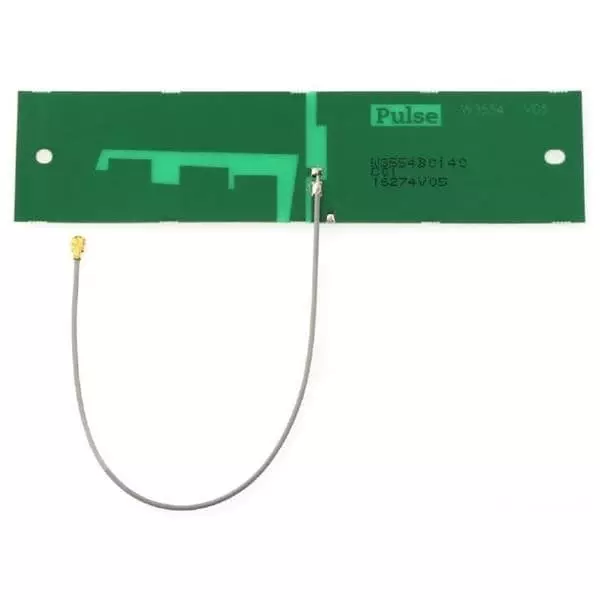

| Type of Product | PCB Antennas |
| Impedance | 50 Ohms |
| Type | Passive Antenna |
| Style | T-Bar |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Antennas |
Impedance |
50 Ohms |
Type |
Passive Antenna |
Style |
T-Bar |
Height |
0.2 mm |
Length |
120 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Pulse Electronics |
Ordering ID |
673-W3554B0140T |
Manufacturer Part Number |
W3554B0140T |
Maximum Frequency |
6 GHz |
Minimum Frequency |
698 MHz |
Gain (Db) |
1.9 dBi, 2.5 dBi, 3.2 dBi, 3.3 dBi, 3.5 dBi |
Centre Frequency |
850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz, 3550 MHz, 5600 MHz |
Antenna Connector |
U.FL |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
Series |
W3554 |
RoHS Compliant |
Yes |
Product Type |
Multiprotocol Antennas |
Data Sheet |
https://www.mouser.com/catalog/specsheets/plei-s-a0010891231-1.pdf |
Number of Bands |
5 Band |
Width |
30 mm |
Termination Style |
Connector |
Mounting Style |
Adhesive Mount |
Protocol - ANT |
802.15.4 (ANT, Thread, Zigbee) |
Power Rating |
5 W |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth, BLE |
Cable Type |
143 mm RF1.13 |
Protocol - Cellular, NBIoT, LTE |
2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA |
Mechanical Style |
PCB Trace |
Application |
Cellular Applications, Satellite, Wireless Applications |
Protocol - Sub GHz |
IoT, ISM, RFID, U-NII |
Protocol - WiFi - 802.11 |
802.11, LoRaWAN, SigFox, WiFi, WLAN |
