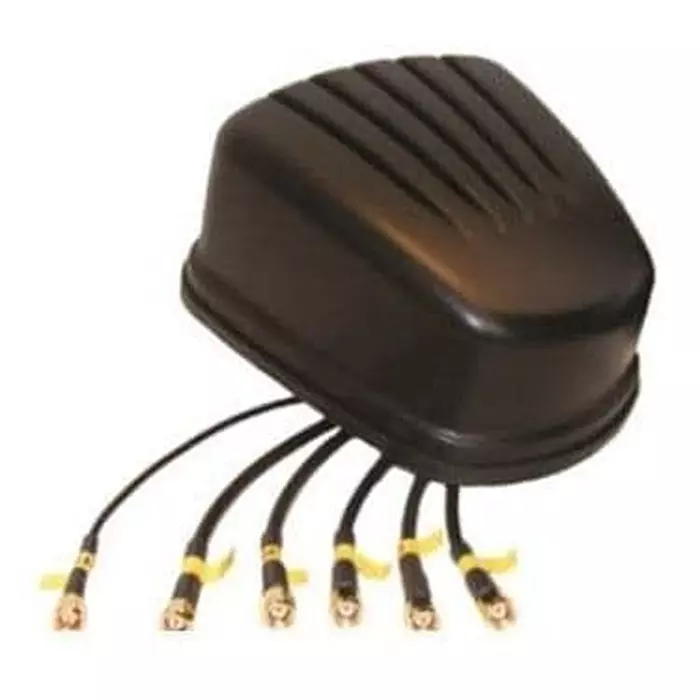

| Type of Product | Vehicle Antennas |
| Impedance | 50 Ohms |
| Type | Active |
| Style | Dome |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Vehicle Antennas |
Impedance |
50 Ohms |
Type |
Active |
Style |
Dome |
Height |
76 mm |
Length |
51.85 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Pulse Electronics |
Ordering ID |
673-PAN62311DM |
Manufacturer Part Number |
PAN62311DM |
Maximum Frequency |
5.925 GHz |
VSWR |
1.5, 1.4 |
Minimum Frequency |
698 MHz |
Gain (Db) |
4 dBi, 5 dBi, 4.5 dBi, 5 dBi |
Centre Frequency |
830 MHz, 1.9325 GHz, 2.45 GHz, 2.5 GHz, 3.25 GHz |
Antenna Connector |
SMA Male, RP-SMA Male |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
Series |
Panther |
IP Rating |
IP67 |
RoHS Compliant |
Yes |
Product Type |
Multiprotocol Antennas |
Data Sheet |
https://www.mouser.in/datasheet/3/203/1/PAN6231DMX.pdf |
Number of Bands |
9 Band |
Width |
64.48 mm |
Termination Style |
Connector |
Mounting Style |
Direct / Permanent Mount |
Protocol - ANT |
802.15.4 (ANT, Thread, Zigbee) |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth, BLE |
Cable Type |
17 ft RG58, RG174 |
Protocol - GPS, GLONASS |
GLONASS, GPS |
Protocol - Cellular, NBIoT, LTE |
Cellular (NBIoT, LTE), GSM, UMTS |
Mechanical Style |
Module |
Application |
Telematics, Location Base Services, First Responders, Government, Energy Vehicles, Fleet Management, Railroad |
Protocol - Sub GHz |
IoT, ISM |
Protocol - WiFi - 802.11 |
802.11, WiFi, WiMAX, WLAN |
