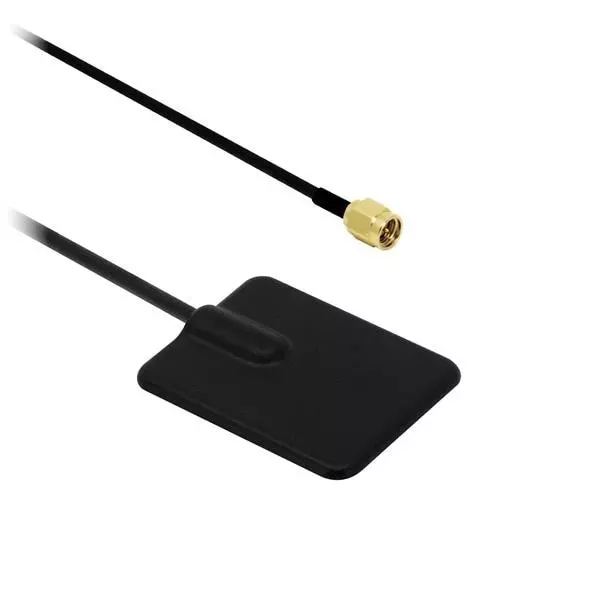

| Type of Product | Indoor Antennas |
| Impedance | 50 Ohms |
| Type | Passive Antenna |
| Style | Panel, Square |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Indoor Antennas |
Impedance |
50 Ohms |
Type |
Passive Antenna |
Style |
Panel, Square |
Height |
5.5 mm |
Length |
39.9 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Siretta |
Ordering ID |
419-1405MSMAMSS26 |
Manufacturer Part Number |
ALPHA14/0.5M/SMAM/S/S/26 |
Maximum Frequency |
2.17 GHz |
VSWR |
2 |
Minimum Frequency |
824 MHz |
Gain (Db) |
2 dBi |
Centre Frequency |
850 MHz, 900 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz |
Antenna Connector |
SMA Male |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
RoHS Compliant |
Yes |
Product Type |
Cellular Antennas - GSM, LTE, 2G/3G/4G/5G |
Data Sheet |
https://www.mouser.in/datasheet/3/5848/1/Alpha_14_Datasheet_Rev_4.1.pdf |
Number of Bands |
4 Band |
Width |
33.5 mm |
Termination Style |
Connector |
Mounting Style |
Adhesive Mount |
Cable Type |
0.5 M RG174 |
Protocol - Cellular, NBIoT, LTE |
2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA |
Mechanical Style |
Module |
Application |
Cellular Applications, ISM Applications |
Protocol - Sub GHz |
ISM |
