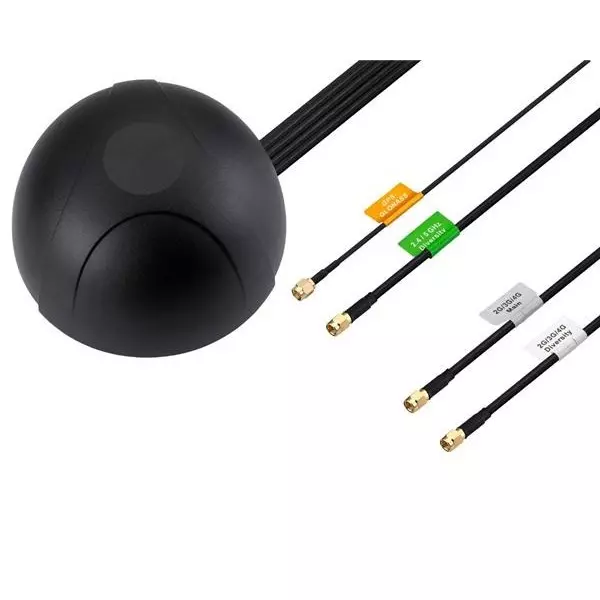

| Type of Product | Outdoor Antennas |
| Impedance | 50 Ohms |
| Type | Active |
| Style | Dome |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Outdoor Antennas |
Impedance |
50 Ohms |
Type |
Active |
Style |
Dome |
Bandwidth |
10 MHz |
Length |
82.4 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Taoglas |
Ordering ID |
960-MA760.A.ABIC.003 |
Manufacturer Part Number |
MA760.A.ABIC.003 |
Maximum Frequency |
5.9 GHz |
VSWR |
1.7:1, 2, 2 |
Minimum Frequency |
698 MHz |
Gain (Db) |
2.1 dBi, 2.9 dBi, 3.8 dBi, 2.8 dBi |
Centre Frequency |
657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1575 MHz, 1602 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 2600 MHz, 3400 MHz, 5200 MHz, 5500 MHz, 5800 MHz |
Antenna Connector |
RP-SMA Male, SMA Male |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
Series |
Pantheon |
IP Rating |
IP67 |
RoHS Compliant |
Yes |
Product Type |
Multiprotocol Antennas |
Data Sheet |
https://www.mouser.in/datasheet/3/942/1/MA760.A.ABIC.003.pdf |
Number of Bands |
4 Band |
Termination Style |
Connector |
Mounting Style |
Direct / Permanent Mount |
Protocol - ANT |
802.15.4 (ANT, Thread, Zigbee) |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth, BLE |
Cable Type |
3 M RG174, 3 M CFD200 x 2 |
Protocol - GPS, GLONASS |
Galileo, GLONASS, GPS |
Protocol - Cellular, NBIoT, LTE |
2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA |
Mechanical Style |
Module |
Application |
Public Safety, Passenger Bus, Rail Services, Digital Signage, Commercial Transportation, Fleet Management |
Protocol - Sub GHz |
IoT, ISM |
Protocol - WiFi - 802.11 |
802.11, WiFi, WLAN |
