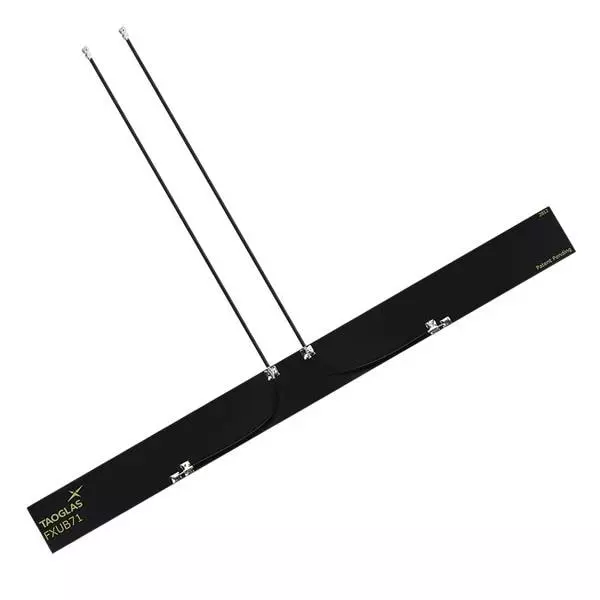

| Type of Product | PCB Antennas |
| Impedance | 50 Ohms |
| Type | Embedded |
| Style | T-Bar Flex |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Antennas |
Impedance |
50 Ohms |
Type |
Embedded |
Style |
T-Bar Flex |
Height |
0.15 mm |
Length |
240 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Taoglas |
Ordering ID |
960-FXUB71A.54C.001 |
Manufacturer Part Number |
FXUB71.A.54.C.001 |
Maximum Frequency |
6 GHz |
Minimum Frequency |
600 MHz |
Centre Frequency |
657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 5500 MHz |
Antenna Connector |
I-PEX MHF 4L |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
RoHS Compliant |
Yes |
Product Type |
Multiprotocol Antennas |
Data Sheet |
https://www.mouser.in/datasheet/3/942/1/FXUB71.A.54.C.001.pdf |
Number of Bands |
2 Band |
Width |
21 mm |
Termination Style |
Connector |
Mounting Style |
Adhesive Mount |
Power Rating |
2 W |
Cable Type |
150 mm RF1.37 |
Protocol - Cellular, NBIoT, LTE |
3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, GPRS |
Mechanical Style |
PCB Trace |
Application |
Wide-band Application |
Protocol - Sub GHz |
IoT, ISM |
Protocol - WiFi - 802.11 |
802.11, WiFi, WLAN |
