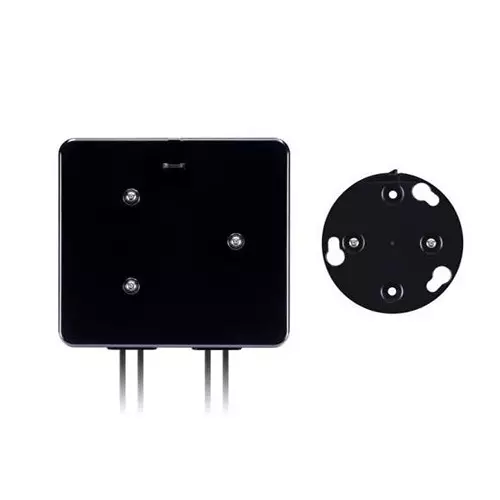

| Type of Product | Outdoor Antennas |
| Impedance | 50 Ohms |
| Type | Active |
| Style | Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Outdoor Antennas |
Impedance |
50 Ohms |
Type |
Active |
Style |
Panel |
Height |
20 mm |
Length |
146 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Taoglas |
Ordering ID |
960-MA961.ABICG002WM |
Manufacturer Part Number |
MA961.A.BICG.002.wm |
Maximum Frequency |
5.85 GHz |
VSWR |
3, 3 |
Minimum Frequency |
698 MHz |
Centre Frequency |
700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 2500 MHz, 3500 MHz, 5200 MHz, 5800 MHz, 1575.42 MHz, 1561.098 MHz, 1602 MHz |
Antenna Connector |
RP-SMA Male, SMA Male |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
IP Rating |
IP67 |
RoHS Compliant |
Yes |
Product Type |
Multiprotocol Antennas |
Data Sheet |
https://www.mouser.in/datasheet/3/942/1/MA961.A.BICG.002.wm.pdf |
Number of Bands |
6 Band |
Width |
134 mm |
Termination Style |
Connector |
Mounting Style |
Bracket Mount |
Protocol - ANT |
802.15.4 (ANT, Thread, Zigbee) |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth, BLE |
Cable Type |
3 M RG174, 3 M KSR200-P |
Protocol - GPS, GLONASS |
BEIDOU, Galileo, GLONASS, GPS, IRNSS |
Protocol - Cellular, NBIoT, LTE |
2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA, HSPA |
Mechanical Style |
Module |
Application |
IoT Gateway, Routers, HD Video Streaming, Transportation |
Protocol - Sub GHz |
IoT, ISM |
Protocol - WiFi - 802.11 |
802.11, WiFi, WLAN |
