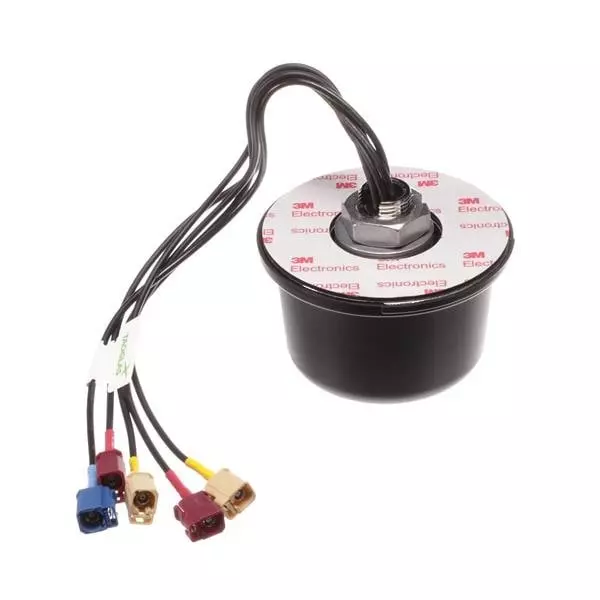

| Type of Product | Outdoor Antennas |
| Impedance | 50 Ohms |
| Type | Active |
| Style | Dome |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Outdoor Antennas |
Impedance |
50 Ohms |
Type |
Active |
Style |
Dome |
Length |
57.4 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Taoglas |
Ordering ID |
960-MA850.ALBICG002 |
Manufacturer Part Number |
MA850.A.LBICG.002 |
Maximum Frequency |
5.85 GHz |
VSWR |
3:1, 2:1, 2, 3.5 |
Minimum Frequency |
698 MHz |
Gain (Db) |
31 dBi, 31 dBi, 31 dBi |
Centre Frequency |
700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2300 MHz, 2600 MHz, 3500 MHz, 1575.42 MHz, 1602 MHz, 1561.098 MHz |
Antenna Connector |
FAKRA C, FAKRA D, FAKRA I |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
IP Rating |
IP69K |
RoHS Compliant |
Yes |
Product Type |
Multiprotocol Antennas |
Data Sheet |
https://www.mouser.in/datasheet/3/942/1/MA850.A.LBICG.002.pdf |
Number of Bands |
5 Band |
Termination Style |
Connector |
Mounting Style |
Direct / Permanent Mount |
Cable Type |
300 mm RG174 x 5 |
Protocol - GPS, GLONASS |
BEIDOU, Galileo, GLONASS, GPS, IRNSS |
Protocol - Cellular, NBIoT, LTE |
2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA |
Mechanical Style |
Module |
Application |
Bus, Telematics, Remote Asset, Pipeline Monitoring, Digital Signage, HD Video over LTE, First Responder, Emergency Services, Automotive Vehicle Tracking, Telematics |
