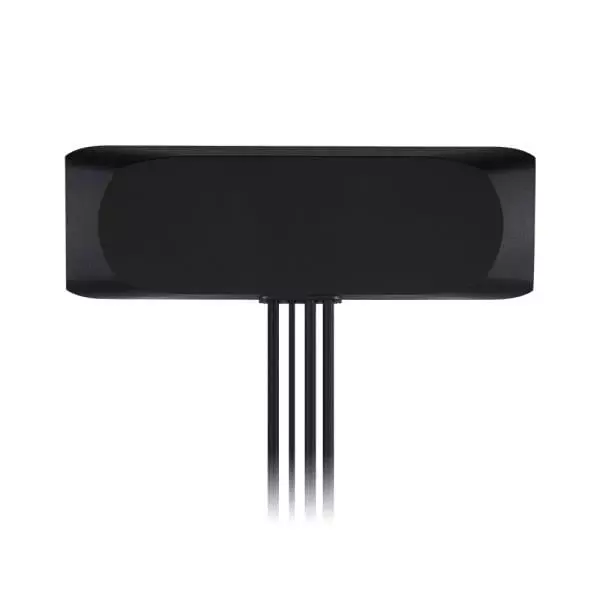

| Type of Product | Vehicle Antennas |
| Impedance | 50 Ohms |
| Type | Active |
| Style | Panel, Rectangular |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Vehicle Antennas |
Impedance |
50 Ohms |
Type |
Active |
Style |
Panel, Rectangular |
Height |
13 mm |
Length |
205.8 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Taoglas |
Ordering ID |
960-MA244.LBIC.002 |
Manufacturer Part Number |
MA244.LBIC.002 |
Maximum Frequency |
5.85 GHz |
VSWR |
1.5:1, 1.5:1, 5.8 |
Minimum Frequency |
698 MHz |
Centre Frequency |
700 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, 3450 MHz, 1575.42 MHz, 1602 MHz |
Antenna Connector |
SMA Male, RP-SMA Male |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
IP Rating |
IP65 |
RoHS Compliant |
Yes |
Product Type |
Multiprotocol Antennas |
Data Sheet |
https://www.mouser.in/datasheet/3/942/1/MA244.LBIC.002.pdf |
Number of Bands |
4 Band |
Width |
68 mm |
Termination Style |
Connector |
Mounting Style |
Adhesive Mount |
Cable Type |
1 M RG174, 1 M TGC200 x 2 |
Protocol - GPS, GLONASS |
Galileo, GLONASS, GPS |
Protocol - Cellular, NBIoT, LTE |
2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA |
Mechanical Style |
Module |
Application |
HD Video over LTE, First Responder, Emergency Services, Automotive Vehicle Tracking, Telematics |
