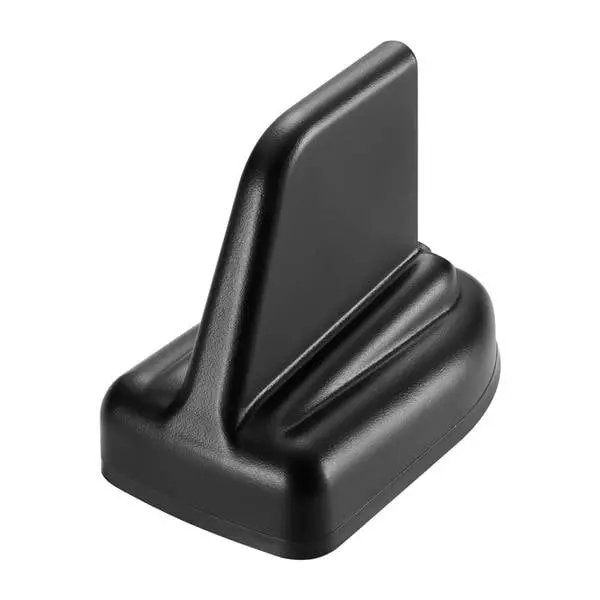

| Type of Product | Vehicle Antennas |
| Impedance | 50 Ohms |
| Type | FAKRA Connector |
| Height | 60 mm |
Type of Product |
Vehicle Antennas |
Impedance |
50 Ohms |
Type |
FAKRA Connector |
Height |
60 mm |
Length |
90 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Taoglas |
Ordering ID |
960-A1047ALBICGTT001 |
Manufacturer Part Number |
MA1047.A.LBICGTT.001 |
Maximum Frequency |
1.6 GHz |
VSWR |
2.4, 2.6, 2.8, 3.3, 4.1 |
Minimum Frequency |
1.57 GHz |
Gain (Db) |
1.1 dBi, 1.5 dBi, 4.4 dBi |
Centre Frequency |
1.57542 GHz, 1.561 GHz, 1.603 GHz |
Antenna Connector |
FAKRA |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
IP Rating |
IP67 |
RoHS Compliant |
Yes |
Data Sheet |
https://www.mouser.in/datasheet/3/942/1/MA1047.A.LBICGTT.001.pdf |
Number of Bands |
3 Band |
Width |
80 mm |
Termination Style |
Connector |
Power Rating |
10 W |
Cable Type |
RG-178 |
Protocol - GPS, GLONASS |
GPS, GLONASS |
Protocol - Cellular, NBIoT, LTE |
Cellular |
