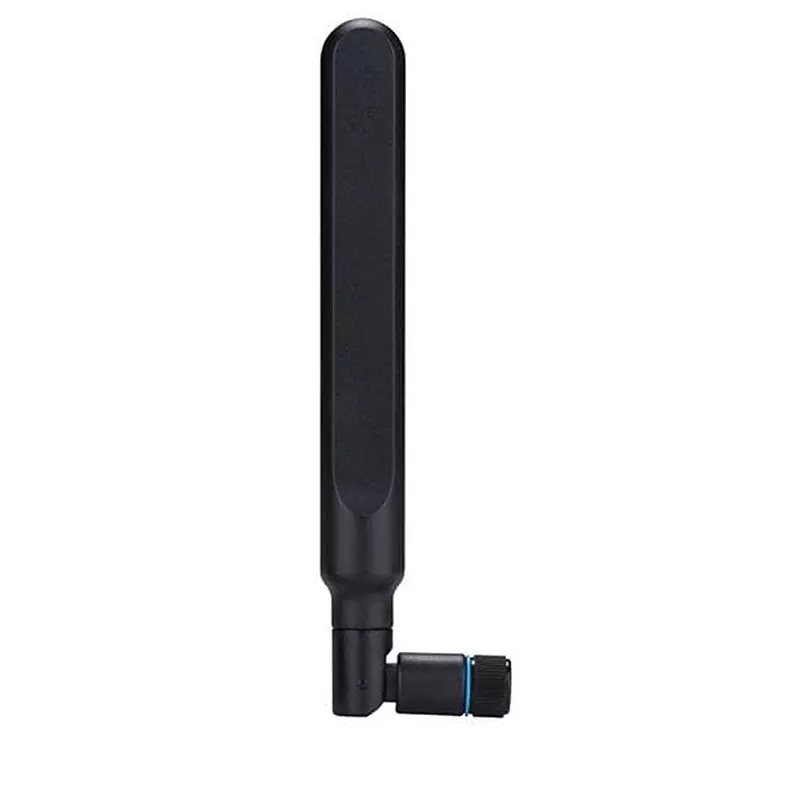

| Type of Product | Outdoor Antennas |
| Impedance | 50 Ohms |
| Type | Monopole |
| Style | Blade Tilt / Swivel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Outdoor Antennas |
Impedance |
50 Ohms |
Type |
Monopole |
Style |
Blade Tilt / Swivel |
Length |
168 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Taoglas |
Ordering ID |
960-TG.10R.A.0113 |
Manufacturer Part Number |
TG.10R.A.0113 |
Maximum Frequency |
2.5 GHz |
Minimum Frequency |
700 MHz |
Gain (Db) |
- 0.5 dBi, - 0.5 dBi, - 0.5 dBi, 1 dBi, 2 dBi, 1.5 dBi, 3 dBi |
Centre Frequency |
700 MHz, 800 MHz, 850 MHz, 900 MHz, 1575 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz |
Antenna Connector |
SMA Male |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
RoHS Compliant |
Yes |
Product Type |
Cellular Antennas - GSM, LTE, 2G/3G/4G/5G |
Data Sheet |
https://www.mouser.in/datasheet/3/942/1/TG.10R.A.0113.pdf |
Number of Bands |
7 Band |
Termination Style |
Connector |
Mounting Style |
Panel Mount |
Power Rating |
50 W |
Protocol - GPS, GLONASS |
Galileo, GPS |
Protocol - Cellular, NBIoT, LTE |
2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS |
Mechanical Style |
Whip |
Application |
Cellular Application, Wireless Applications |
