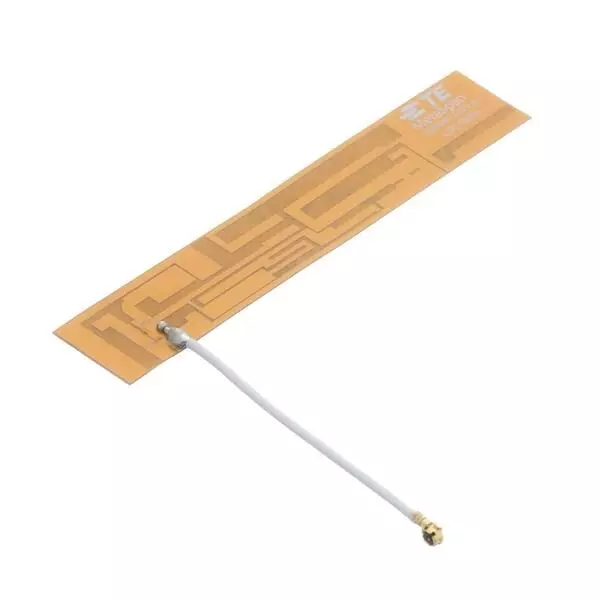

| Type of Product | PCB Antennas |
| Impedance | 50 Ohms |
| Style | T-Bar Flex |
| Height | 0.2 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Antennas |
Impedance |
50 Ohms |
Style |
T-Bar Flex |
Height |
0.2 mm |
Length |
80 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
TE Connectivity |
Ordering ID |
571-2195846-1 |
Manufacturer Part Number |
2195846-1 |
Maximum Frequency |
7.125 GHz |
VSWR |
4.0:1 |
Minimum Frequency |
698 MHz |
Gain (Db) |
4.99 dB |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
RoHS Compliant |
Yes |
Product Type |
Multiprotocol Antennas |
Electrical Type |
Embedded |
Data Sheet |
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=DS_2195846&DocType=Data Sheet&DocLang=English&PartCntxt=2195846-1&DocFormat=pdf |
Number of Bands |
7 Band |
Width |
15 mm |
Termination Style |
Connector |
Mounting Style |
Adhesive Mount |
Protocol - ANT |
802.15.4 (ANT, Thread, Zigbee) |
Power Rating |
10 W |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth |
Protocol - GPS, GLONASS |
GNSS |
Protocol - Cellular, NBIoT, LTE |
2G/3G/4G/5G, Cellular (NBIoT, LTE), Cat-M |
Mechanical Style |
PCB Trace |
Protocol - WiFi - 802.11 |
WiFi 6E |
