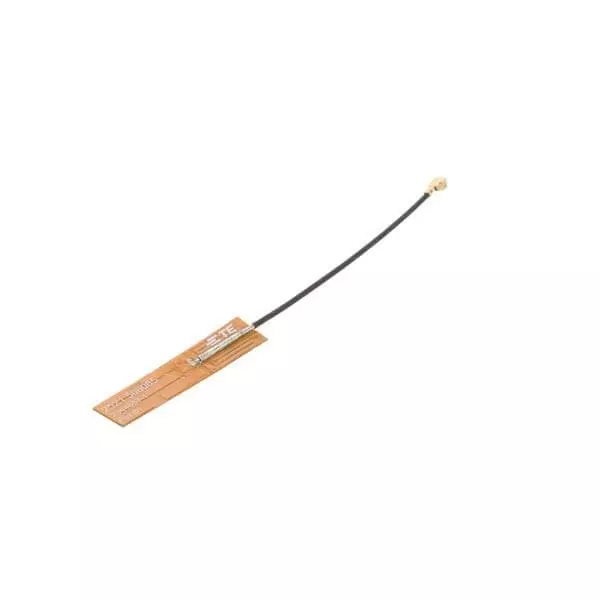

| Type of Product | PCB Antennas |
| Impedance | 50 Ohms |
| Style | I-Bar Flex |
| Bandwidth | 100 MHz, 725 MHz, 1.2 GHz |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Antennas |
Impedance |
50 Ohms |
Style |
I-Bar Flex |
Bandwidth |
100 MHz, 725 MHz, 1.2 GHz |
Height |
0.19 mm |
Length |
35 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
TE Connectivity |
Ordering ID |
571-2344657-1 |
Manufacturer Part Number |
2344657-1 |
Maximum Frequency |
7.125 GHz |
VSWR |
2.7:1 |
Minimum Frequency |
2.4 GHz |
Gain (Db) |
5.3 dB |
Centre Frequency |
2.45 GHz, 5.5125 GHz, 6.525 GHz |
Antenna Connector |
MHF1 |
RoHS Compliant |
Yes |
Product Type |
2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee |
Electrical Type |
Embedded |
Data Sheet |
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=Datasheet_PN-2344657-X&DocType=Data Sheet&DocLang=English&PartCntxt=2344657-1&DocFormat=pdf |
Number of Bands |
3 Band |
Width |
8 mm |
Termination Style |
Connector |
Mounting Style |
Adhesive Mount |
Protocol - ANT |
802.15.4 (ANT, Thread, Zigbee) |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth |
Cable Type |
1.13 mm Coax |
Protocol - WiFi - 802.11 |
802.11 a/b/g/n/ac/ad/ax, WiFi, WLAN |
