Ships within 45 days
View
View
View
View
| Type of Product | PCB Antennas |
| Impedance | 50 Ohms |
| Type | Dipole |
| Bandwidth | 2.4 GHz |
Type of Product |
PCB Antennas |
Impedance |
50 Ohms |
Type |
Dipole |
Bandwidth |
2.4 GHz |
Height |
0.1 mm |
Length |
12.4 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
TE Connectivity |
Ordering ID |
712-ANT24FPCSAH100UF |
Manufacturer Part Number |

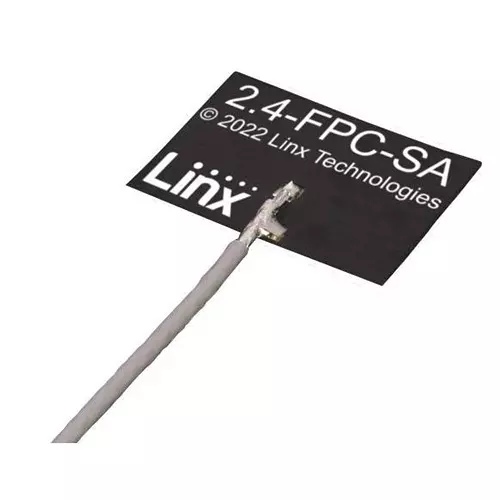

ANT-2.4-FPC-SAH100UF |
Maximum Frequency |
2.5 GHz |
VSWR |
4.0999999999999996 |
Minimum Frequency |
2.4 GHz |
Gain (Db) |
0.1 dBi |
Antenna Connector |
U.FL |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 85°C |
Series |
LFPC24 |
RoHS Compliant |
Yes |
Product Type |
2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee |
Data Sheet |
https://linxtechnologies.com/wp/wp-content/uploads/ant-2_4-fpc-sah-ds.pdf |
Number of Bands |
1 Band |
Width |
8.2 mm |
Termination Style |
Connector |
Mounting Style |
Adhesive Mount |
Protocol - ANT |
802.15.4 (ANT, Thread, Zigbee) |
Power Rating |
2 W |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth |
Cable Type |
Coaxial |
Mechanical Style |
Rectangular |
Application |
2.4 GHz ISM, Bluetooth, ZigBee |
Protocol - WiFi - 802.11 |
802.11, WiFi |
