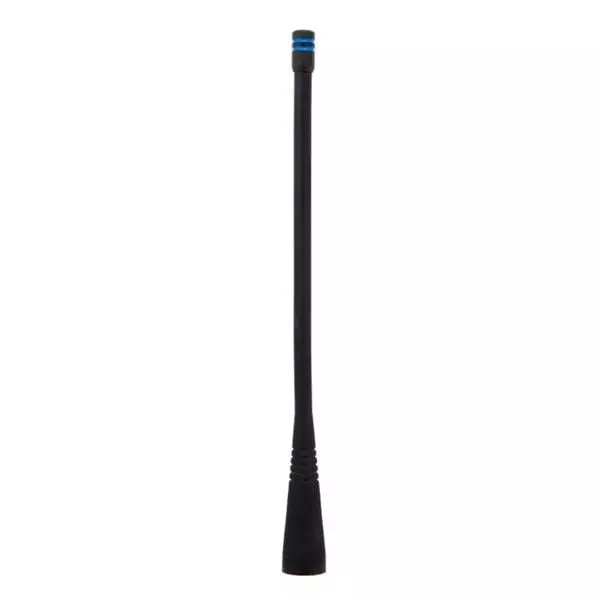

| Type of Product | Indoor Antennas |
| Impedance | 50 Ohms |
| Type | Monopole |
| Style | Straight |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Indoor Antennas |
Impedance |
50 Ohms |
Type |
Monopole |
Style |
Straight |
Bandwidth |
70 MHz |
Height |
9.7 mm |
Length |
178 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
TE Connectivity |
Ordering ID |
712-ANT-418-CW-QWSMA |
Manufacturer Part Number |
ANT-418-CW-QW-SMA |
Maximum Frequency |
450 MHz |
VSWR |
1.9 |
Minimum Frequency |
380 MHz |
Gain (Db) |
2.9 dBi |
Centre Frequency |
418 MHz |
Antenna Connector |
SMA Male |
Minimum Operating Temperature |
- 40°C |
Maximum Operating Temperature |
+ 90°C |
Series |
QW |
RoHS Compliant |
Yes |
Product Type |
ISM Antennas - ISM, MICS, UHF, VHF, UWB |
Data Sheet |
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=ANT418CWQW&DocType=Data+Sheet&DocLang=English&DocFormat=pdf&PartCntxt=ANT418CWQWSMA |
Number of Bands |
1 Band |
Width |
14.5 mm |
Termination Style |
Connector |
Mounting Style |
Panel Mount |
Protocol - Cellular, NBIoT, LTE |
Cellular (NBIoT, LTE), GSM |
Mechanical Style |
Whip |
Application |
ISM, Remote Control, Alarms, Security Systems |
