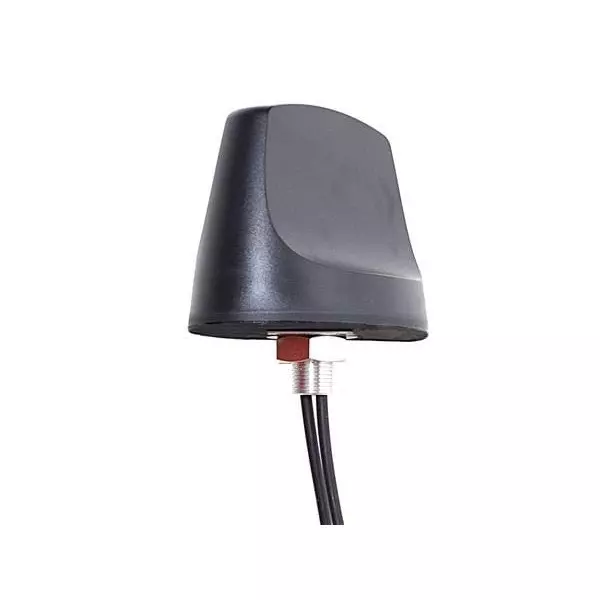

| Type of Product | Vehicle Antennas |
| Impedance | 50 Ohms |
| Type | MIMO |
| Style | Sharkfin |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Vehicle Antennas |
Impedance |
50 Ohms |
Type |
MIMO |
Style |
Sharkfin |
Height |
95 mm |
Length |
130 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
TE Connectivity |
Ordering ID |
239-MTRA61274CB2-001 |
Manufacturer Part Number |
MTRA61274CB2-001 |
Maximum Frequency |
2.7 GHz |
VSWR |
2.5 |
Minimum Frequency |
617 MHz |
Gain (Db) |
3.2 dBi, 4 dBi, 4 dBi, 3.4 dBi, 4.7 dBi, 4.1 dBi, 4.1 dBi, 4.2 dBi, 4 dBi, 3.4 dBi |
Centre Frequency |
657.5 MHz, 761 MHz, 859 MHz, 920 MHz, 1450 MHz, 1785 MHz, 1920 MHz, 2045 MHz, 2400 MHz, 2600 MHz |
Antenna Connector |
SMA Male |
Minimum Operating Temperature |
- 30°C |
Maximum Operating Temperature |
+ 70°C |
IP Rating |
IP67 |
RoHS Compliant |
Yes |
Product Type |
Cellular Antennas - GSM, LTE, 2G/3G/4G/5G |
Data Sheet |
https://www.mouser.in/datasheet/3/79/1/ANT-DS-MTRA61274Cx2 0919.pdf |
Number of Bands |
10 Band |
Width |
84 mm |
Termination Style |
Connector |
Mounting Style |
Panel Mount |
Protocol - ANT |
802.15.4 (ANT, Thread, Zigbee), 802.16 |
Power Rating |
50 W |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth |
Cable Type |
610 mm LMR-195M |
Protocol - Cellular, NBIoT, LTE |
3G, Cellular (NBIoT, LTE), GSM, UMTS, WCMDA |
Mechanical Style |
Module |
Application |
Bluetooth, LTE, GSM 850/900, GSM 1800/1900, UMTS/WCMDA (3G) |
Protocol - WiFi - 802.11 |
802.11 b/g/n, WLAN |
