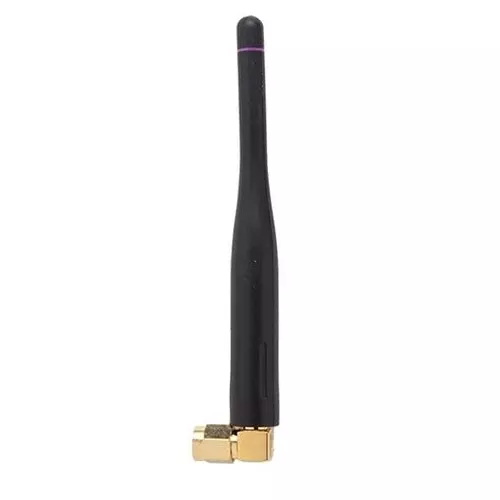

| Type of Product | Indoor Antennas |
| Impedance | 50 Ohms |
| Type | Dipole |
| Style | RA Straight |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Indoor Antennas |
Impedance |
50 Ohms |
Type |
Dipole |
Style |
RA Straight |
Bandwidth |
120 MHz |
Length |
97.7 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
TE Connectivity |
Ordering ID |
712-ANT-2.4-CW-RCL |
Manufacturer Part Number |
ANT-2.4-CW-RCL |
Maximum Frequency |
2.5 GHz |
VSWR |
1.7 |
Minimum Frequency |
2.4 GHz |
Gain (Db) |
1.1 dBi |
Centre Frequency |
2.45 GHz |
Antenna Connector |
RP-SMA Male |
Minimum Operating Temperature |
- 20°C |
Maximum Operating Temperature |
+ 85°C |
Series |
RCL |
RoHS Compliant |
Yes |
Product Type |
2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee |
Data Sheet |
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=L9000027-01&DocType=Data+Sheet&DocLang=English&DocFormat=pdf&PartCntxt=L9000027-01 |
Number of Bands |
1 Band |
Width |
18.7 mm |
Termination Style |
Connector |
Mounting Style |
Panel Mount |
Protocol - ANT |
802.15.4 (ANT, Thread, Zigbee), 802.16 |
Power Rating |
5 W |
Protocol - Bluetooth BLE - 802.15.1 |
Bluetooth, BLE |
Mechanical Style |
Whip |
Application |
Bluetooth, WiFi, Zigbee, Thread |
Protocol - Sub GHz |
ISM |
Protocol - WiFi - 802.11 |
WiFi |
