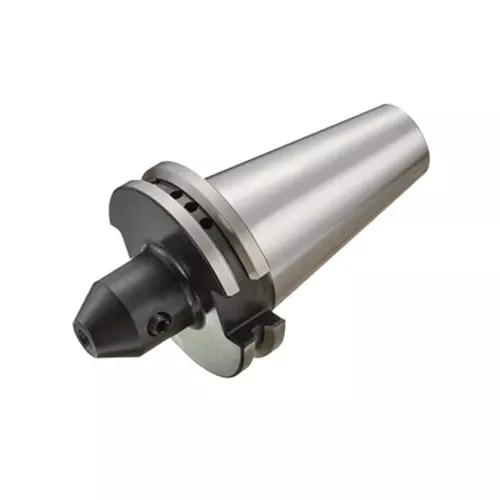

| Type of Product | Weldon Adaptor |
| Weight | 920 g |
| Body Material | Steel |
| Country of Origin | China |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Weldon Adaptor |
Weight |
920 g |
Body Material |
Steel |
Country of Origin |
China |
Overall Length |
4.7 inch (118.40 mm) |
Thread Size |
M16 |
Name of Manufacturer/Packer/Importer |
Kantilal & co |
Functional Diameter |
1.75 inch (44 mm) |
Body Length |
13 mm |
Ordering ID |
A1B20-40 10 050 |
Rotational Speed |
18,000 1/min |
Connection Diameter |
0.39 inch (10 mm) |
Torque (ft/lbs) |
7.3756 ft/lbf |
Connection |
ISO7388.1/DIN69871 -AD/B Central/Flange: ISO40 |
Method |
Balancing by Design |
Body Diameter |
20 mm |
Body Length (inch) |
0.51 inch |
Taper Angle |
30 ° |
Body Diameter (inch) |
0.8 inch |
Functional Length |
1.97 inch (50 mm) |
Style |
Decentral Over Flange And Axial |
Standard |
ISO7388-1 |
