| Type of Product | Arc Welding Machine |

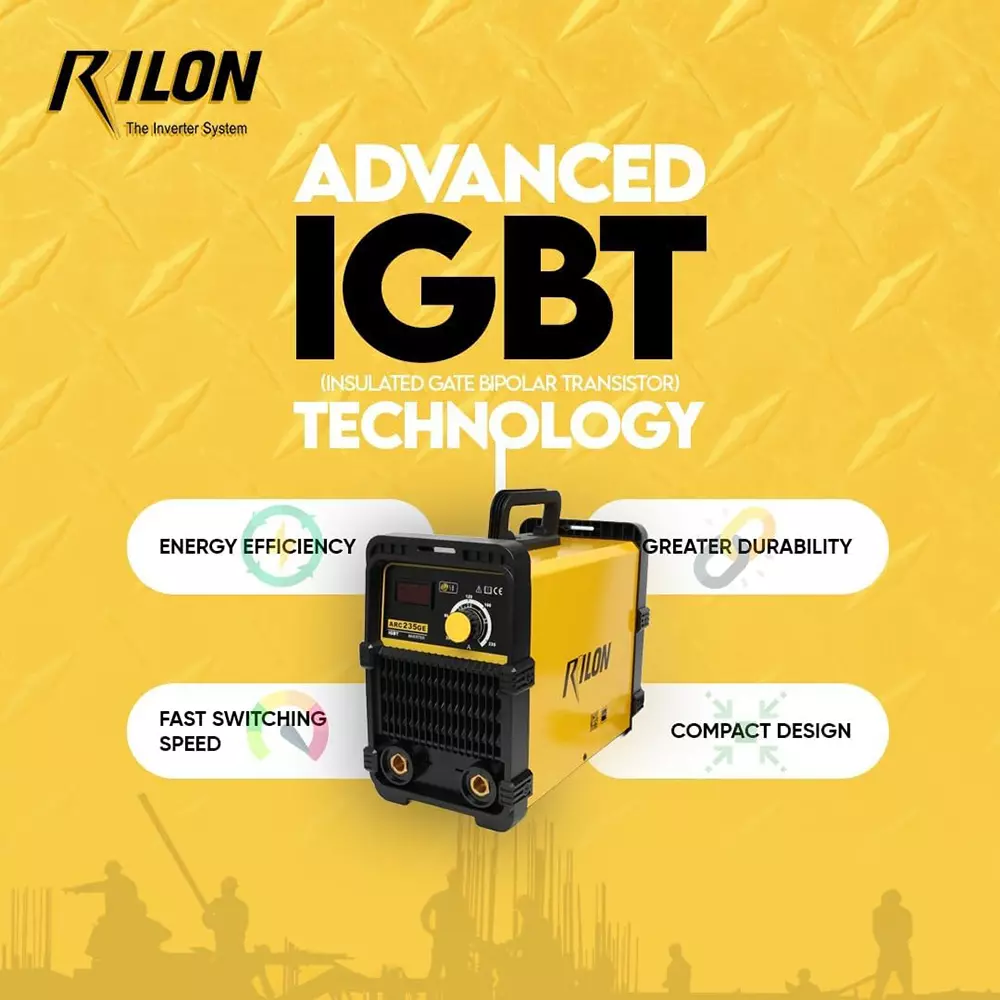

| Technology | IGBT |
| Frequency | 50 to 60 Hz |
| Phase | Single Phase |
Type of Product |
Arc Welding Machine |
Technology |
IGBT |
Frequency |
50 to 60 Hz |
Phase |
Single Phase |
Weight |
3.3 Kg |
Model No |
ARC 235GE |
Dimension |
294X126X205 mm |
Features |

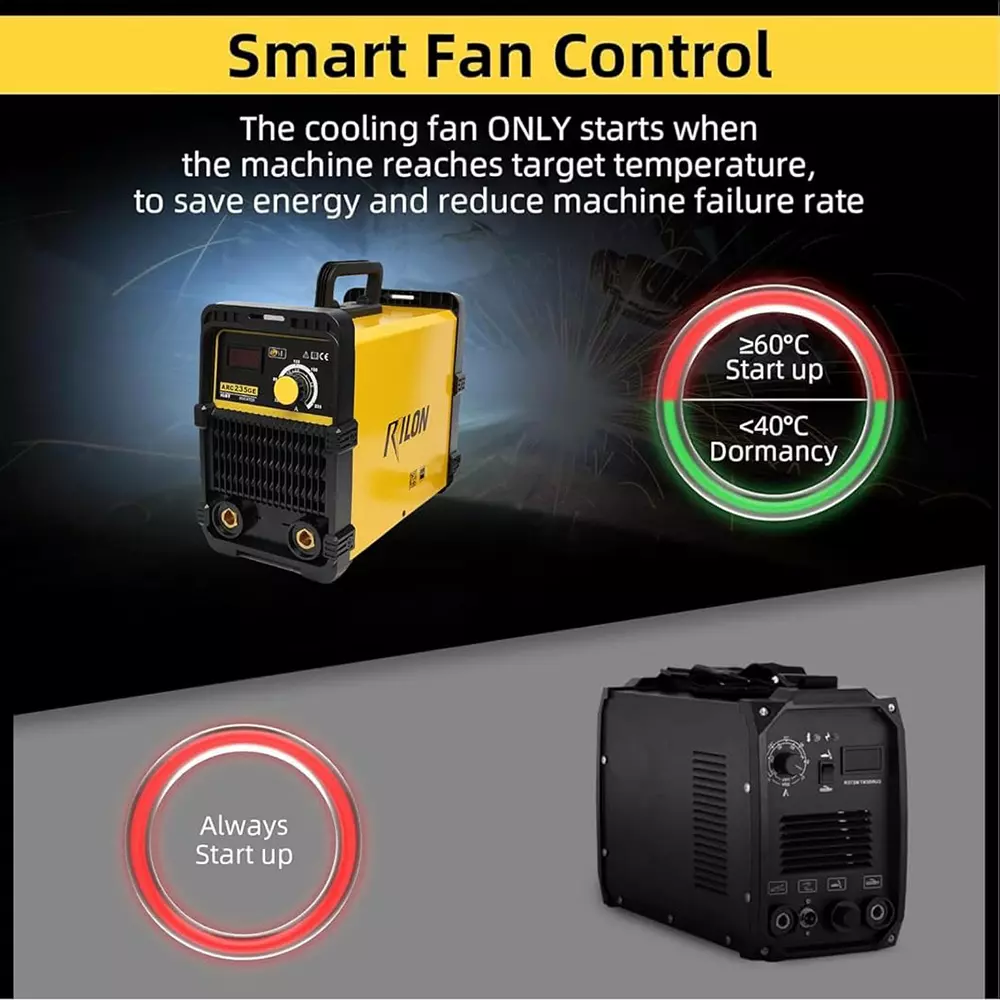

RICHIP Chip Bulit-In., 70KHZ Inverter Frequency Delivery Smooth Welding Experience., Bulit-In Power Management System., The VRD And Smart Fan Can Be Customized., Self-Adaptive Arc Force And Hot Start Built-in, Anti- Sticking., Non-Stop Welding For 2.5 Or 3.2mm, Even 4.0mm Electrode., Suitable For Acid And Basic Electrode, Even Cellulose Electrodes. (for MMA 235ge & 270ge) |
Current |
33 Amp |
Input Voltage |
220 V |
Output Current |
160 Amp @ 40°C, 180 Amp @ 25°C, 120 Amp |
Voltage |
26.4 V @ 40°C, 27.2 V @ 25°C, 24.8 V |
Rated Current |
input @ Output - 32.9A@180A |
Duty Cycle |
20% @ 40 °C, 40% @ 25 °C, 100% |
Current Range |
30-180 Amp |
Package Contains |
Inverter Welding Machine, Electrode Holder With 1.5 m Cable, Earth Clamp With 1 m Cable |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
GUPTA ENTERPRISES |
Ocv |
58 V |
