| Type | Auxiliary Relay |
| Monotaro ID | 70149740 |
| Width (mm) | 10 |
| Auxiliary Contacts | 6A2B |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Auxiliary Relay |
Monotaro ID |
70149740 |
Width (mm) |
10 |
Auxiliary Contacts |
6A2B |
Length (mm) |
DC24 |
Thickness (mm) |
AC-15: 500,000 times or more (220/440V), AC-12: 250,000 times or more (220/440V), DC-13/-12 (220/440V): 500,000 times or more (24-220V) |
Type of Product |

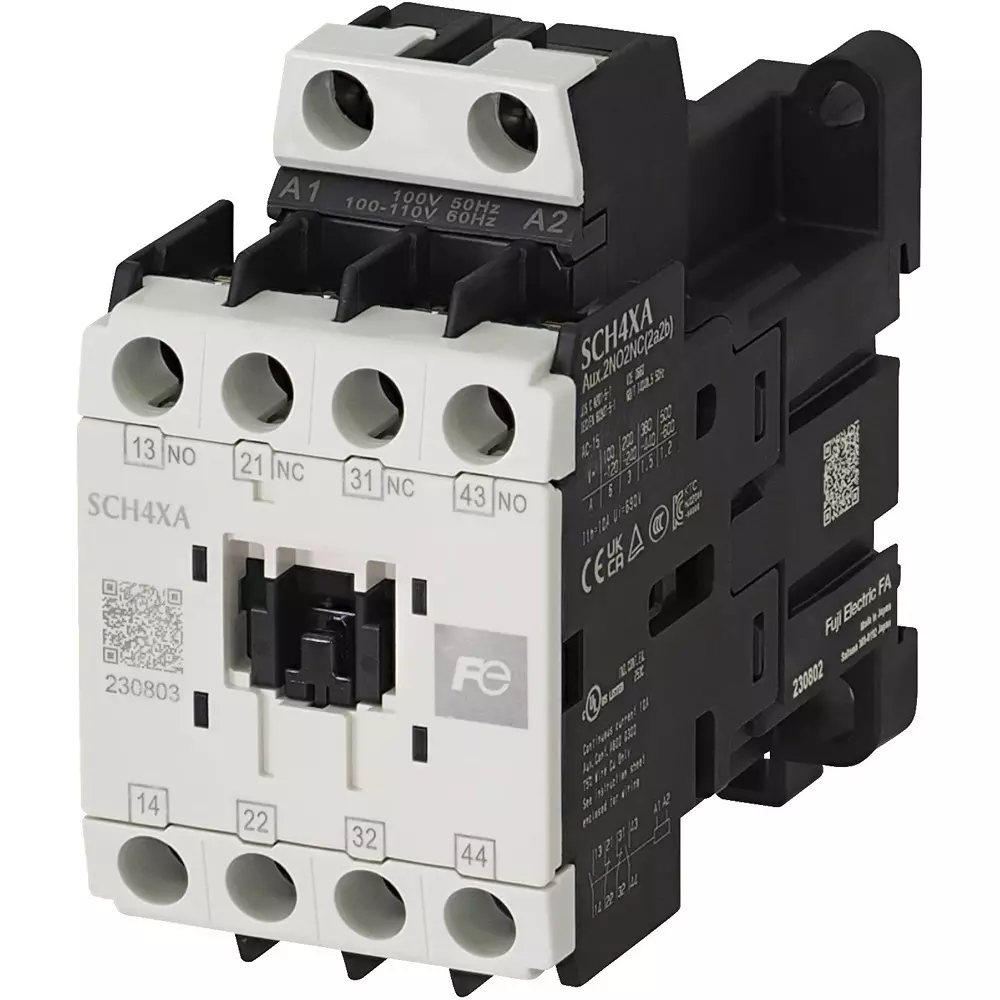

High Capacity Type Auxiliary Relay |
Electrical Durability |
AC-15: 500,000 times or more (220/440V), AC-12: 250,000 times or more (220/440V), DC-13/-12 (220/440V): 500,000 times or more (24-220V) |
Mechanical Durability |
10 million times or more |
Import Country |
Direct Import from Japan |
Model No |
SCH4XUH-E62Z3 |
Rated Operating Current (A) |
AC-15 (coil load): 6 (100-120 V AC), 6 (200-240 V AC), 4 (380-440 V AC), 4 (500-600 V AC)<br> AC-12 (resistive load): 10 (AC 100 to 120 V), 10 (AC 200 to 240 V), 10 (AC 380 to 440 V), 10 (AC 500 to 600 V)<br> DC-13 (coil load): 5 (DC24 V), 1.5 (DC48 V), 0.7 (DC110 V), 0.27 (DC220 V)<br> DC-12 (resistive load): 10 (DC24 V), 5 (DC48 V), 4 (DC110 V), 1 (DC220 V) |
Contact Configuration |
High capacity (single contact) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fuji Electric Co., Ltd. |
Terminal Fitting Type |
Screw Mounting, 35 mm wide Top Hat Rail Mounting |
Specifications |
Treatment category: Tropical cold treatment |
Rated Insulation Voltage (V) |
690 |
Installation Altitude (m) |
2000 or less |
No. of Contacts |
8 |
No. of Pole |
4 |
Shock Resistance (m/s²) |
50 |
