| Type | AC fan |
| Mass (g) | About 540 |
| Monotaro ID | 8592132 |
| Type of Product | AC Axial Fan |
Type |
AC fan |
Mass (g) |
About 540 |
Monotaro ID |
8592132 |
Type of Product |
AC Axial Fan |
Standard |
UL/CSA |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Square |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |

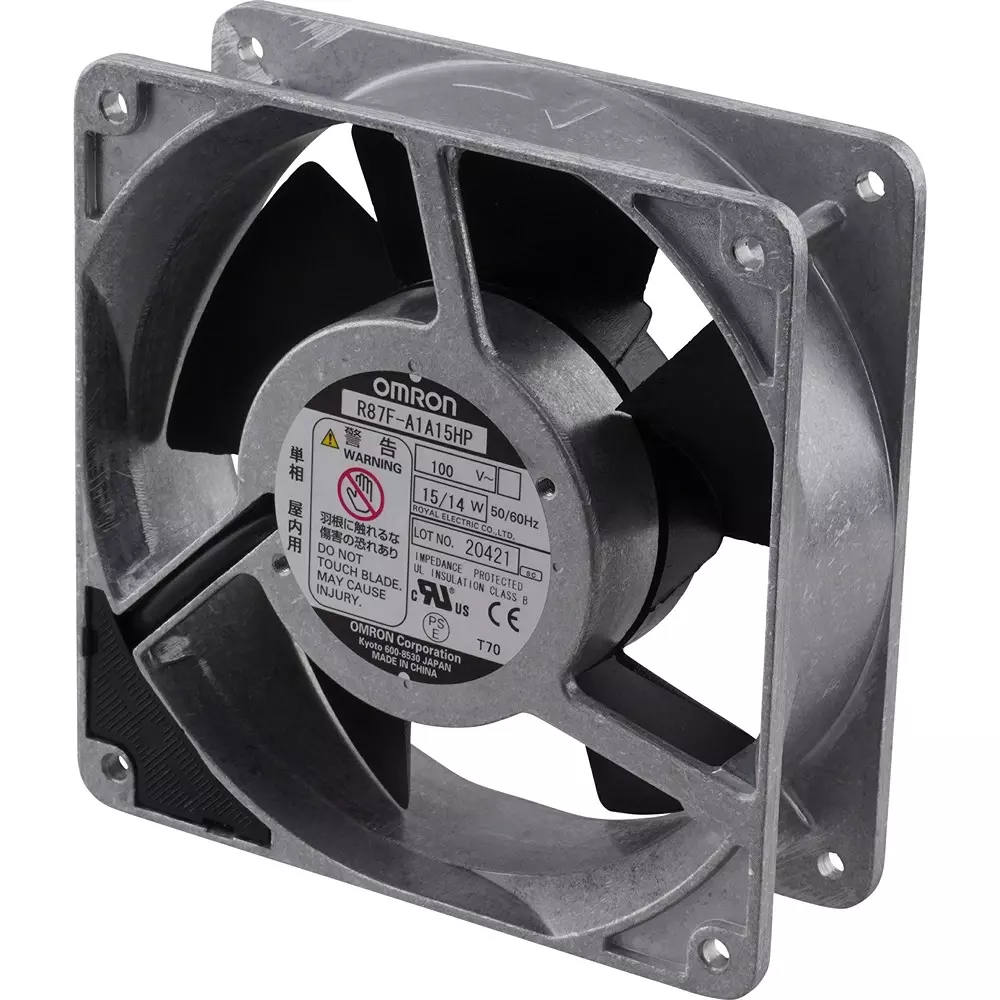

R87F-A1A15HP |
Insulation Class |
IEC Class B (130 ° C), UL Class A (105 ° C), CSA Class A (105 ° C) |
Input Voltage (V) |
AC100 |
Operation Ambient Temperature (°C) |
-30 to +70 (no freezing) |
Included Bearing |
ball bearing |
Ambient Humidity to Use |
25 to 85%RH |
Frequency (Hz) |
50/60 |
Isolation Voltage |
AC2000V (1 minute) Power supply connection part and non-charged metal part |
Maximum Static Pressure (Pa) |
93.1/80.4(50/60Hz) |
Maximum Airflow |
2.7/3.1(50/60Hz) m³ |
Insulation Resistance (MOhm) |
100 or more (DC500V mega) power supply connections and non-charged metal parts |
Sound Pressure Level (dB) |
42/46(50/60Hz) |
Allowable Voltage Fluctuation |
85 to 110% of rated voltage |
Frame Material |
Aluminum die casting |
Rated Voltage (V) |
AC100 |
Storage Temperature |
-40 to +85℃ |
