| Country of Origin | CHINA |
| Type of Product | Stainless Steel Louver With Round Hood Cover |
| Model No | 150 |
| Material | Stainless steel (SUS304) |
Country of Origin |
CHINA |
Type of Product |
Stainless Steel Louver With Round Hood Cover |
Model No |
150 |
Material |
Stainless steel (SUS304) |
Type |
Round type with hood |
Name of Manufacturer/Packer/Importer |
MonotaRO |

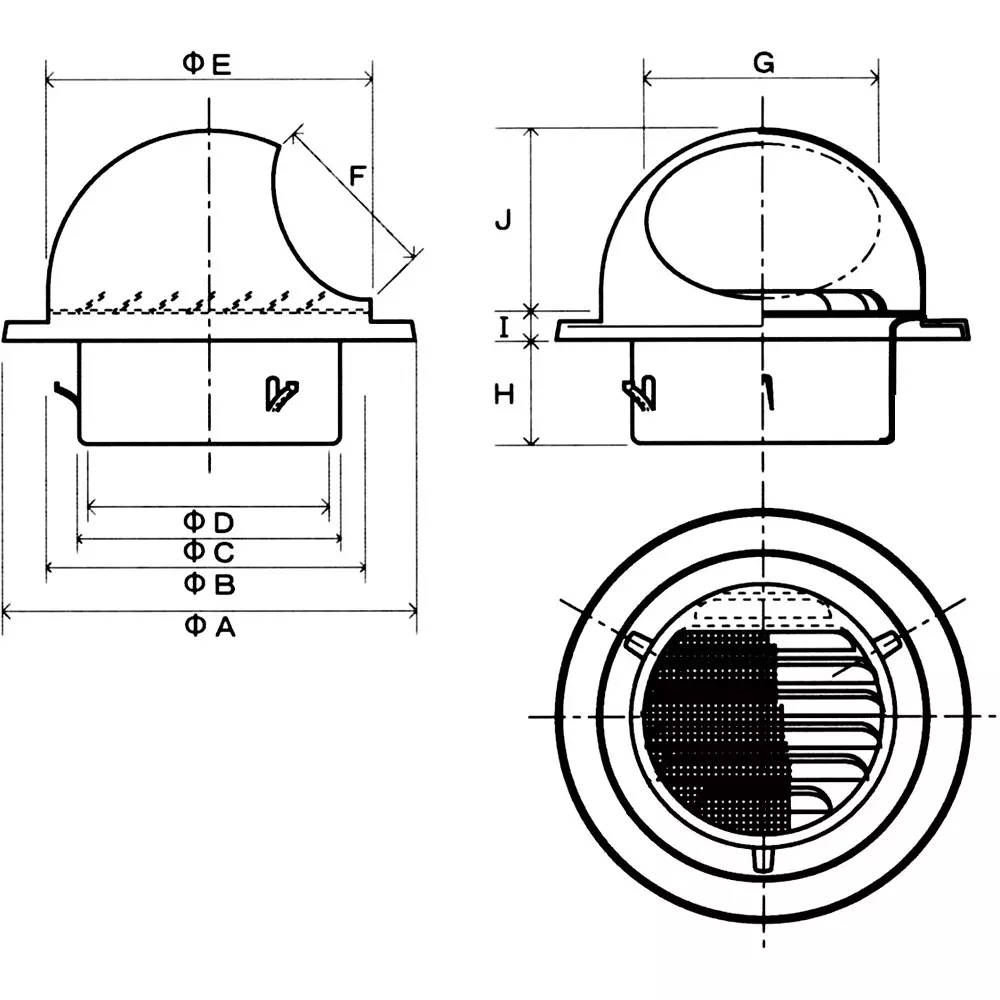

Dimensions C (mm) |
145 |
Import Country |
Direct Import from Japan |
Nominal Diameter |
150 mm |
Dimensions E (mm) |
174 |
Dimensions B (mm) |
158 |
Dimensions F (mm) |
93 |
Monotaro ID |
53104084 |
Dimensions I (mm) |
15.5 |
Dimension J (mm) |
88.5 |
Dimensions g (mm) |
130 |
Height (mm) |
20 (water stop) |
Wire Mesh |
14 mesh |
Dimensions H (mm) |
52 |
Thickness (mm) |
0.5 (main body, louver board, hood) |
Suitable Pipe Diameter (Φmm) |
147 - 157 |
Dimensions D (mm) |
134 |
Dimensions A (mm) |
212 |
