| Country of Origin | JAPAN |

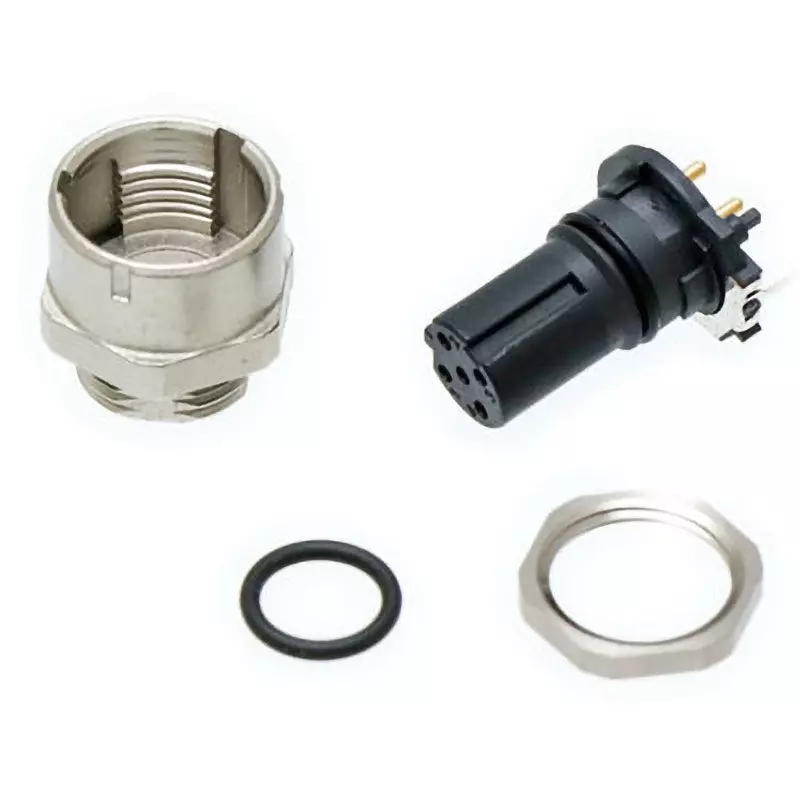

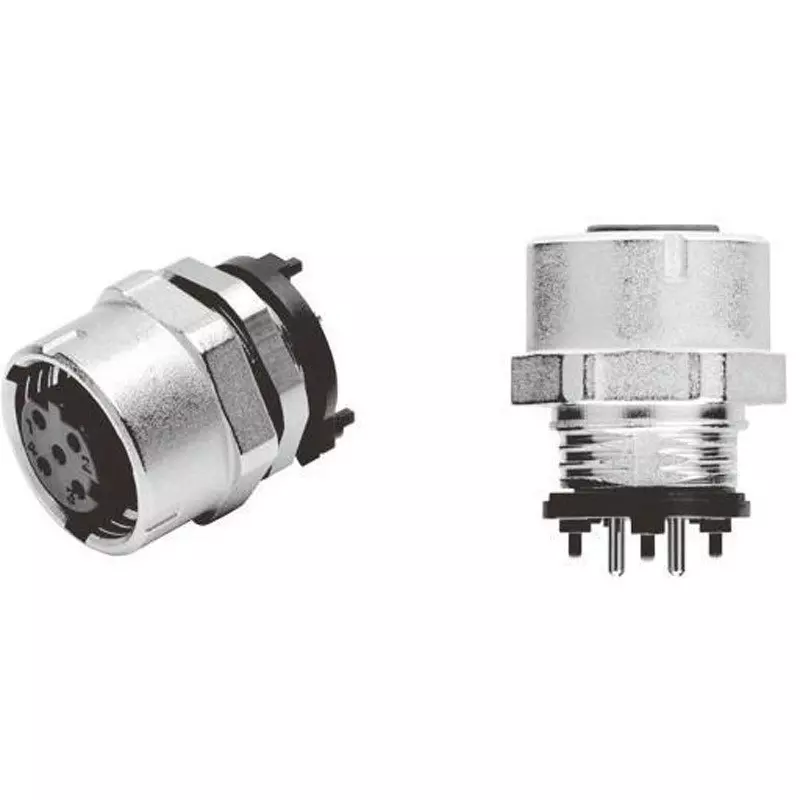

| Type of Product | M12 Panel Mounting Straight Terminal |
| Part No | 64-3405-56 |
| Model No | XS5P-T426-1 |
Country of Origin |
JAPAN |
Type of Product |
M12 Panel Mounting Straight Terminal |
Part No |
64-3405-56 |
Model No |
XS5P-T426-1 |
Type |
for ethernet |
Monotaro ID |
46685493 |
Storage Temperature Range |
-25 to 70℃ |
Protection Class |
M12：IEC IP67, RJ45：IEC IP20 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Import Country |
Direct Import from Japan |
Withstand voltage (V / min) |
AC 1000 (leakage current 1 mA or less) |
Contact Resistance (ohm) |
40 mΩ or Less |
Insulation Resistance (MOhm) |
1000 or more |
Plating Type |
Gold plating |
Belt-End Finish |
Dip terminal |
Terminal Fitting Type |
Dip terminal |
Specifications |
M12 panel mounting |
Rated Voltage (V) |
DC 125 |
Rated Current (A) |
4 |
Operation Ambient Temperature (°C) |
-25 to 70 |
No. of Pole |
4 |
