| Type of Product | Stopper Switch |
| Model No | STR6 |
| Monotaro ID | 22204972 |
| Insulation Resistance | DC250V (20MΩ or more with mega / between cases) |
Type of Product |
Stopper Switch |
Model No |
STR6 |
Monotaro ID |
22204972 |
Insulation Resistance |
DC250V (20MΩ or more with mega / between cases) |
Operating Force (N) |
0.7 |
Protection Class |
IP65 |
Output Specifications |
NPN open collector (ON when approaching) |
Current Consumption (mA) |
15MAX |
Case Material |
GF2066 nylon |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Movement Differential (Max.) |
0.1mm or less |
Pretravel (PT) |
0.3 to 0.6 mm |
Name of Manufacturer/Packer/Importer |
ASA ELECTRONICS INDUSTRY |
Operation Ambient Temperature (°C) |
-20 to 85 (no condensation) |
Allowable Operating Frequency (times/min) |
60 or less |
Head Shape |
Circle |
Indicator Lamp |
Red |
Stroke (mm) |
1.2 |
Power Supply Voltage (V) |
DC 5 to 24 |
Cable |

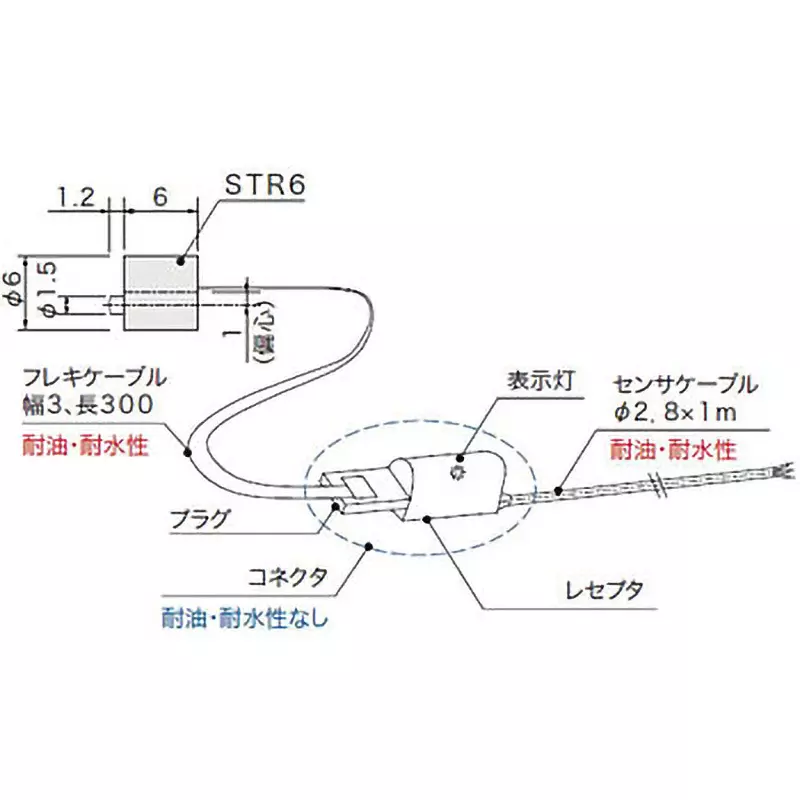

Flexible cable width 3 x 300, sensor cable 3 core Φ2.8 x 1m |
Output Current (mA) |
12MAX |
Repeatability (mm) |
±0.005 |
Shaft Material |
SUS303 |
