| Type of Product | Key Switch |

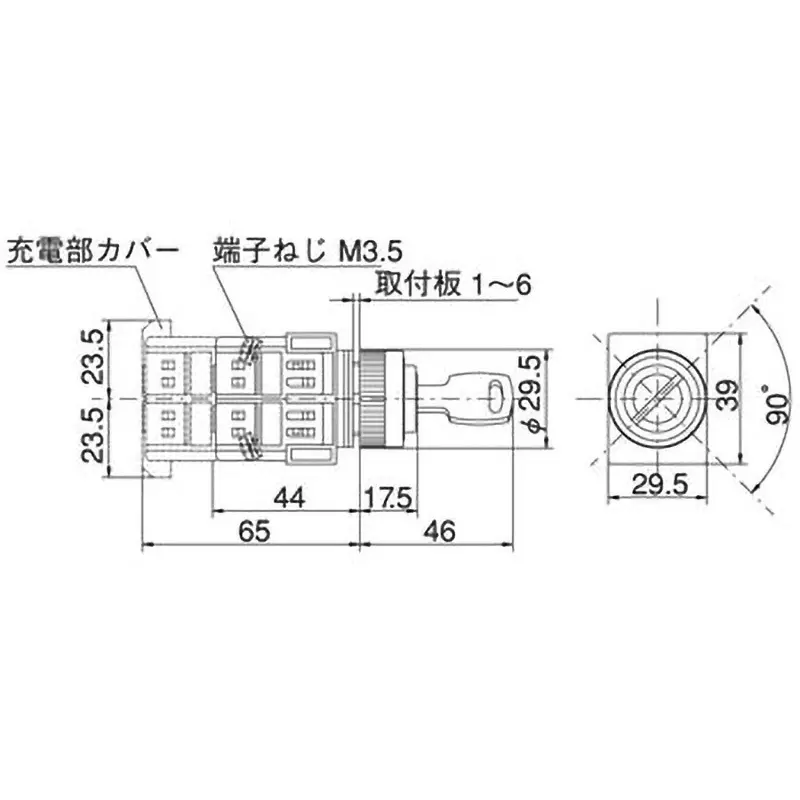

| Model No | A22SK210E:701 |
| Monotaro ID | 37832085 |
| Shape | With key (metal ring) |
Type of Product |
Key Switch |
Model No |
A22SK210E:701 |
Monotaro ID |
37832085 |
Shape |
With key (metal ring) |
Withstand Voltage |
Between live part and ground / AC2200V for 1 minute |
Mechanical Durability |
1 million times |
Electrical Durability |
1 million times |
Protection Class |
IP65 oil-proof type |
Rated Operating Current (A) |
AC-15 class (inductive load): 24V / 10, 48V / 10, 110V / 6, 220V / 4, 440V / 1.5, DC-13 class (inductive load): 24V / 6, 48V / 2, 110V / 0.7, 220V / 0.3, DC-12 class (resistive load): 24V / 6, 48V / 3, 110V / 2, 220V / 1 |
Rated Insulation Voltage (V) |
AC/DC 600 |
Contact Configuration |
1A |
Temperature Rise |
40K or less |
Operation Type |
2 notch manual reset |
Mounting Side |
Contact unit / Horizontal mounting (Terminal direction / Left / Right) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Relative Humidity |
45 to 85% |
Name of Manufacturer/Packer/Importer |
Maruyasu Electric Co., Ltd. |
Operation Ambient Temperature (°C) |
-20 to 55 |
Shock Resistance (m/s²) |
(Malfunction) 100 / (durability) 500 |
Insulation Resistance (MOhm) |
100 mohm or more (500 V) |
Contact Resistance (ohm) |
30 mΩ or less |
Mounting Hole Diameter (Φmm) |
22.3(+0.4 to 0) |
Number of Notches |
2 |
Cold Resistance |
-40 to 70℃ |
Heat Resistant Temperature (℃) |
-40 to 70 |
Installation Altitude (m) |
2000 or less |
