Ships within 19 days
View
View
View
View
| Switch Type | ON-OFF |

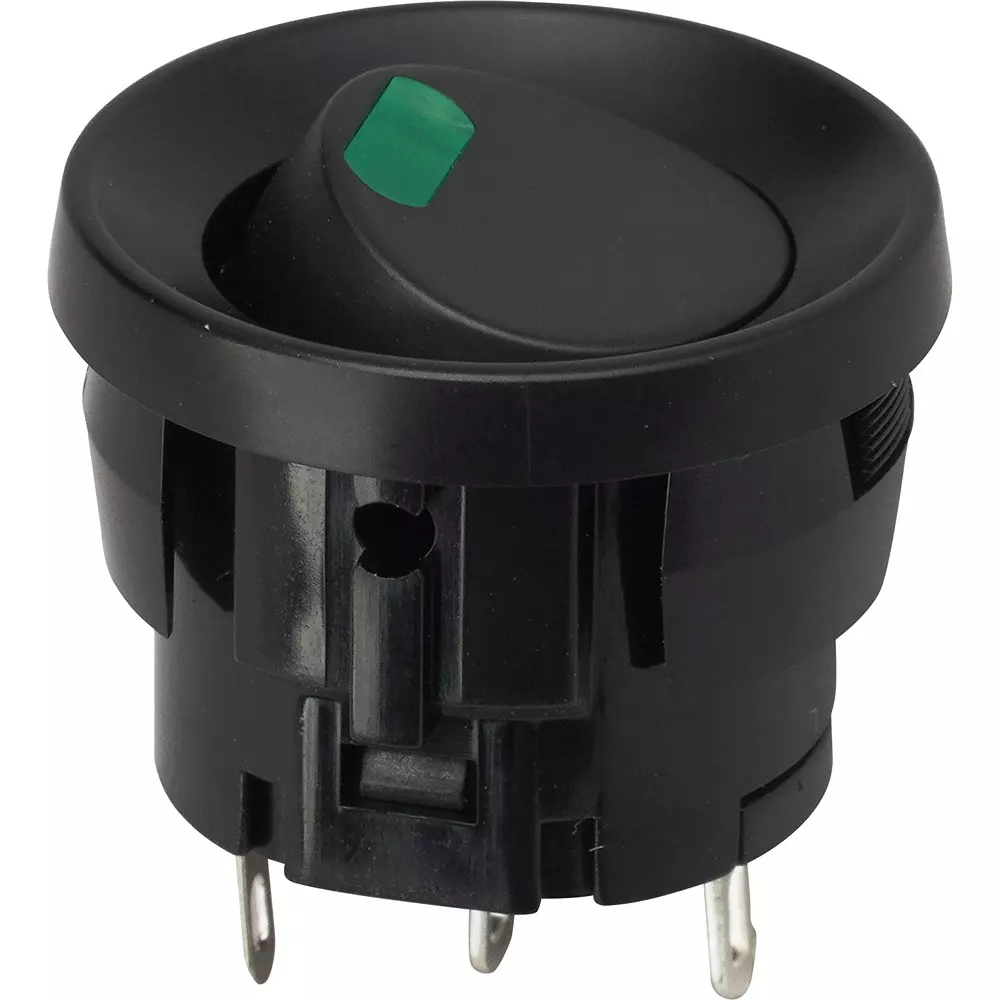

| Type of Product | Wave Switch (LED) DS-060 Series |
| Model No | DS-060K-S-LG |
| Color | LED green |
Switch Type |
ON-OFF |
Type of Product |
Wave Switch (LED) DS-060 Series |
Model No |
DS-060K-S-LG |
Color |
LED green |
Rated Voltage (V) |
125/250 |
Monotaro ID |
38907714 |
Rated Current (A) |
46145 |
RoHS Directive |
Correspondence |
No. of Pole |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Shape |
Solder terminals |
Circuits |
SPST(2P) |
Name of Manufacturer/Packer/Importer |
Miyama Electric Co., Ltd. |
Isolation Voltage |
AC 1500 V for 1 minute |
Insulation Resistance (MOhm) |
100 or more (MIN)/DC500V |
Contact Resistance (ohm) |
20 mΩ or less (MAX) |
Circuit configuration |
SPST(2P) |
Current Capacity |
5A125V.AC 3A250V.AC |
Throw Type |
Single throw |
Suitable Door Thickness to Mount (mm) |
1 to 2.5 |

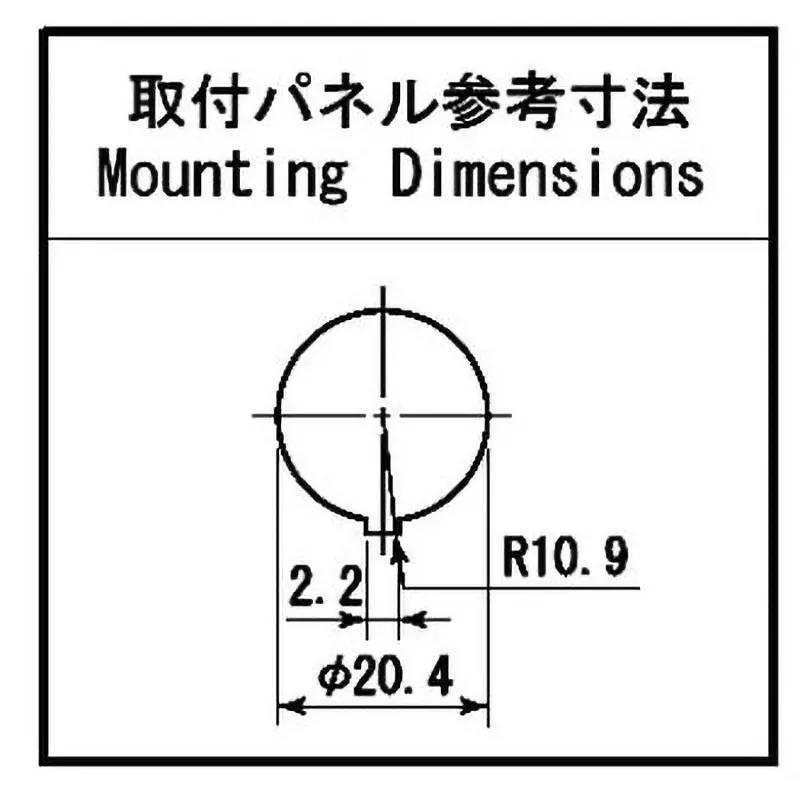

Mounting Hole |
20.4 mm |
