Ships within 19 days
View
View
View
View
| Type of Product | Slide Switch |
| Model No | S-1-Z |
| Monotaro ID | 39221192 |
| Withstand Voltage | 1500V AC for 1 minute |
Type of Product |
Slide Switch |
Model No |
S-1-Z |
Monotaro ID |
39221192 |
Withstand Voltage |
1500V AC for 1 minute |
Rating |
AC 125 V 8 Amp, AC 250 V 4 Amp |
Electrical Life (Rated Load) |
10000 times |
No. of Pole |
Double Pole Double Throw |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Shape |
Solder |
Name of Manufacturer/Packer/Importer |
Nidec Components (formerly Nidec Copal Electronics/Fujisoku) |
Insulation Resistance (MOhm) |
100 or more (DC 500 V) |
Contact Resistance (ohm) |
(Initial) 10 or less (DC 2-4 V 1 Amp) |

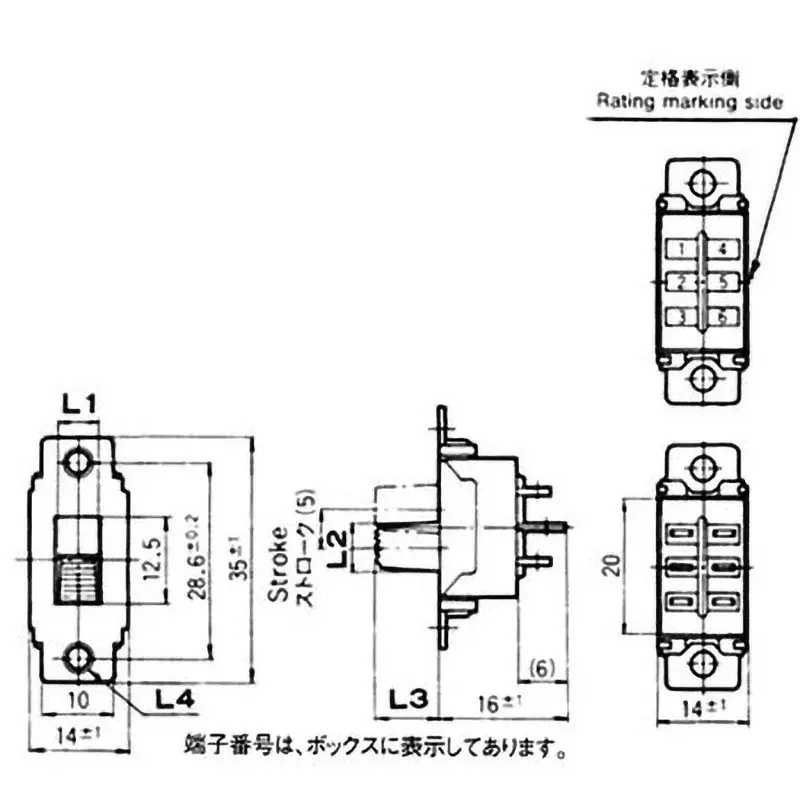

Dimension L3 (mm) |
9 |
Dimension L1 |
6.2 |
Dimension L2 |
7.4 |
Dimension L4 |
M3x0.5 |
