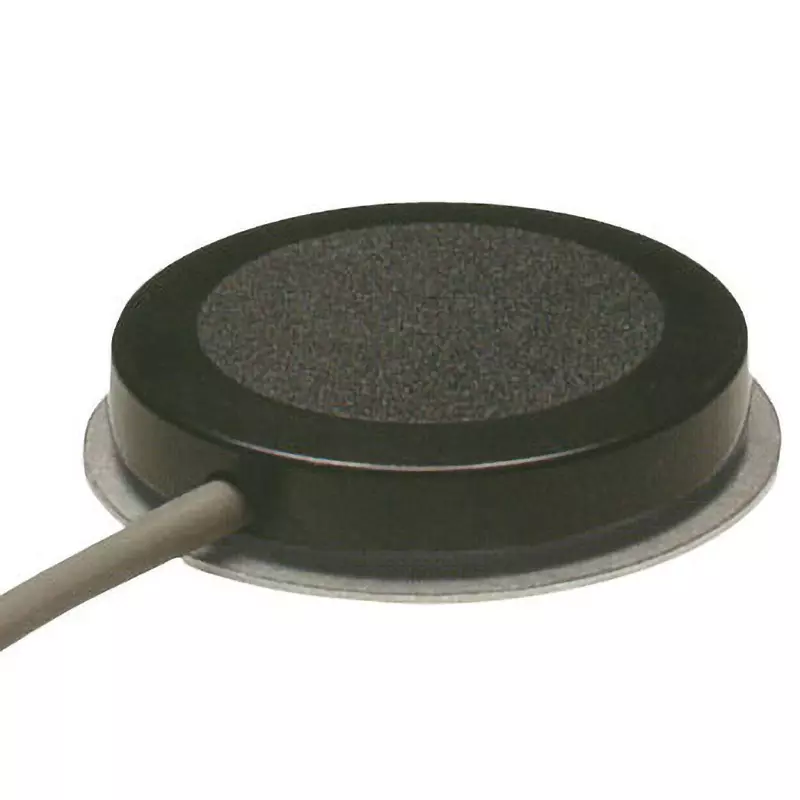

| Type of Product | Foot Switch |
| Model No | OFL-SG-HB |
| Material | ABS resin |
| Type | Push type |
Type of Product |
Foot Switch |
Model No |
OFL-SG-HB |
Material |
ABS resin |
Type |
Push type |
Color |
Black |
Rated Voltage (V) |
DC 30 |
Monotaro ID |
8519752 |
Rated Current (A) |
0.1 |
Mass (g) |
230 |
Protection Class |
IP30 |
Rating |
0.1A-30 V DC / minimum load ・ 1mA-5 V DC |
Contact Configuration |
1a |
No. of Port |
1 train |
Rated Carrying Current (A) |
0.1 |
Operating Force |
7.5 N (0.8 Kgf) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Osaka Automatic Electric Co., Ltd. |
Specifications |
Thin multifunctional type |
Operating Patterns |
Momentary |
Built in Switch |
S-type (gold clad contact) |
Cable Type |
0.75 mm² 2 core 1.5 m |
Minimum Load Current |
1 mA |
Minimum Load Voltage |
DC 5 V |
Switch Shape |
Built-in S type (gold clad contact) |
