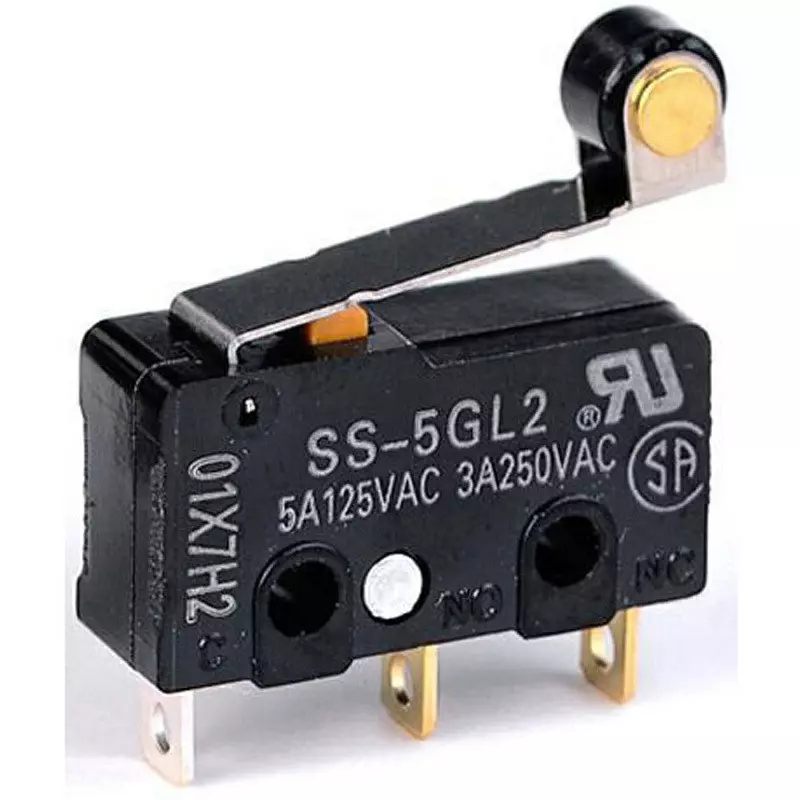

| Type of Product | Ultra-Compact Basic Switch |
| Rated Voltage (V) | AC125 |
| Monotaro ID | 32577106 |
| Rated Current (A) | 5 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ultra-Compact Basic Switch |
Rated Voltage (V) |
AC125 |
Monotaro ID |
32577106 |
Rated Current (A) |
5 |
Mass (g) |
1.6 (in the case of pin push button type) |
Allowable Operating Speed |
0.1mm to 1m/S |
Heat Resistance Temperature |
85℃ (general type) |
Electric Shock Protection Class |
Class I |
Terminal Type |
Solder terminal |
Actuator Type |
Hinge / roller / lever type |
Withstand Voltage |
Between terminals of the same pole: AC1000V + 50 / 60Hz + 1min ・ Between charging metal part and ground: AC1500V + 50 / 60Hz + 1min ・ Between each terminal and non-charging metal part: AC1500V + 50 / 60Hz + 1min (when using separator) |
Mechanical Durability |
30 million operations or more (60 operations / min) |
Minimum Applicable Load |
DC5V 160 mA |
PTI (Proof Tracking Index) |
175 |
Inrush current (A) |
Normally closed circuit: Up to 20, Normally open circuit: Up to 10 |
Electrical Durability |
200,000 operations or more (30 operations / min) |
Protection Class |
IEC IP40 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
Frequency 10-55Hz, double amplitude 1.5mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25 to 85 60% RH or less (with no icing or condensation) |
Manufacturer Part Number |
SS-5GL2 |
Insulation Resistance (MOhm) |
100 or more (with DC500V insulation resistance meter) |
Contact Resistance (ohm) |
50 or less (initial value) |
