Ships within 19 days
Model No
View
View
View
View
| Type of Product | Basic Switch |
| Model No | Z-01HQ-B |
| Type | High sensitivity, for microloads |

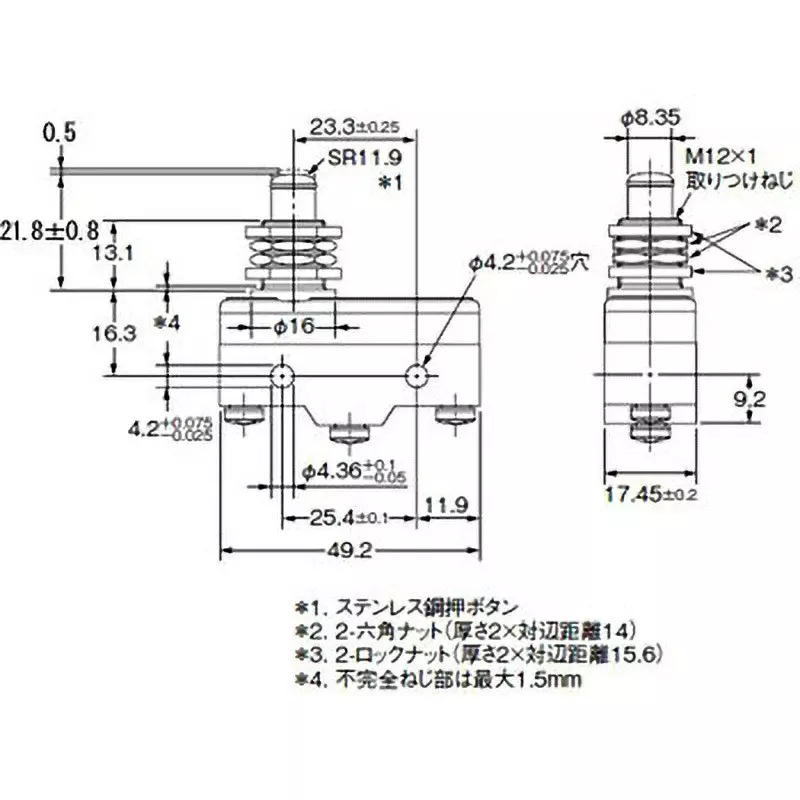

| Dimension (mm) | 31.8x49.2x17.45 |
Type of Product |
Basic Switch |
Model No |
Z-01HQ-B |
Type |
High sensitivity, for microloads |
Dimension (mm) |
31.8x49.2x17.45 |
Rated Voltage (V) |
AC125, DC8, 14, 30 |
Monotaro ID |
35500893 |
Mass (g) |
About 22-58 |
Allowable Operating Speed |
0.01mm to 1m/s |
Terminal Type |
Screw Terminal (Internal Tooth Washer) |
Actuator Type |
Panel-Mounted Push-Button Type (Op) |
Withstand Voltage |
(Between same pole terminals) AC600V + 50 / 60Hz + 1min, (between charging metal part and ground, between each terminal and non-charging metal part) AC2000V + 50 / 60Hz + 1min |
Mechanical Durability |
20 million times or more |
Minimum Applicable Load |
DC5V 1 mA |
Protection Class |
IP00 |
Applicable Standard |
UL、CSA、TUV(EN61058-1)、CCC(GB14048.5) |
Lead Wire Length (mm) |
- |
Contact Configuration |
1C |
Shock Resistance |
Up to 1000m/s² |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55Hz, double amplitude 1.5mm (malfunction 1ms or less) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25-80 (no icing) |
Manufacturer Part Number |
Z-01HQ-B |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Contact Resistance (ohm) |
50 or less (initial value) |
