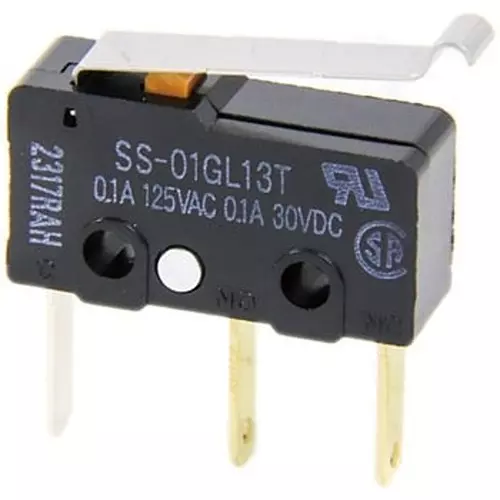

| Type of Product | Ultra Compact Basic Switch |
| Model No | SS-01GL13T |
| Rated Voltage (V) | DC30 |
| Monotaro ID | 46551836 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Ultra Compact Basic Switch |
Model No |
SS-01GL13T |
Rated Voltage (V) |
DC30 |
Monotaro ID |
46551836 |
Rated Current (A) |
0.1 |
Mass (g) |
1.6 (in the case of pin push button type) |
Allowable Operating Speed |
0.1mm～1m/S |
Heat Resistance Temperature |
85℃ (General Type) |
Electric Shock Protection Class |
Class I |
Terminal Type |
# 110 tab terminal |
Actuator Type |
Hinge / R / lever type |
Withstand Voltage |
Between terminals of the same pole: AC600V 50 / 60Hz 1min ・ Between charging metal part and ground: AC1500V 50 / 60Hz 1min ・ Between each terminal and non-charging metal part: AC1500V 50 / 60Hz 1min (when using separator) |
Mechanical Durability |
30 million operations or more (60 operations / min) |
Minimum Applicable Load |
DC5V 1mA |
PTI (Proof Tracking Index) |
175 |
Inrush current (A) |
Normally closed circuit: max. 1, normally open circuit: max. 1 |
Electrical Durability |
200,000 operations or more (30 operations / min) |
Protection Class |
IEC IP40 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
Frequency 10-55Hz, double amplitude 1.5mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25 to 85 60% RH or less (with no icing or condensation) |
Insulation Resistance (MOhm) |
100 or more (with DC500V insulation resistance meter) |
Contact Resistance (ohm) |
100 or less (initial value) |
