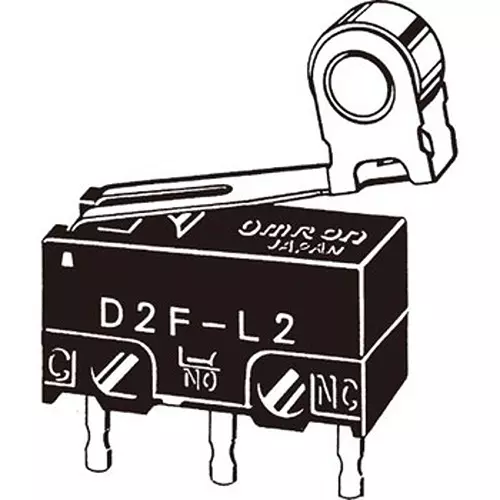

| Type of Product | Ultra-Small Basic Switch |
| Model No | D2F-01FL2-A |
| Rated Voltage (V) | DC30, 0.1A |
| Monotaro ID | 46502976 |
Type of Product |
Ultra-Small Basic Switch |
Model No |
D2F-01FL2-A |
Rated Voltage (V) |
DC30, 0.1A |
Monotaro ID |
46502976 |
Allowable Operating Speed |
5 mm to 500 mm/s |
Terminal Type |
Printed Circuit Board Terminals (Right-Angle Type) |
Actuator Type |
Hinge / roller / lever type |
Mechanical Durability |
1,000,000 times or more (60 times / min) |
Minimum Applicable Load |
DC5 V 1 mA (reference Value) |
Electrical Durability |
100,000 times or more (30 times / min) |
Operating Humidity Range |
85% RH or less (at 5 to 35 ° C) |
Protection Class |
IP40 |
Contact Type |
1c (double throw type) |
Resistive Load |
(DC30V)0.1A |
Operating Temperature Range |
-40 to +85℃ 60% RH or less (with no icing or condensation) |
Contact Configuration |
1c (single pole double throw type) |
Series |
D2F Series |
Contact Specifications |
Crossbar |
Shock Resistance |
1000 m / s² (Value at the operation limit position, contact closing or opening within 1 ms) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shock Resistance (Malfunction) |
300 m / s² max. (Value at the operation limit position, contact closing or opening within 1 ms) |
Vibration Resistance (Malfunction) |
10 to 55Hz, double amplitude 1.5 mm (value at the operation limit position, contact closing or opening within 1ms) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V insulation resistance meter) |
Contact Resistance (ohm) |
100 or less (initial value) |
