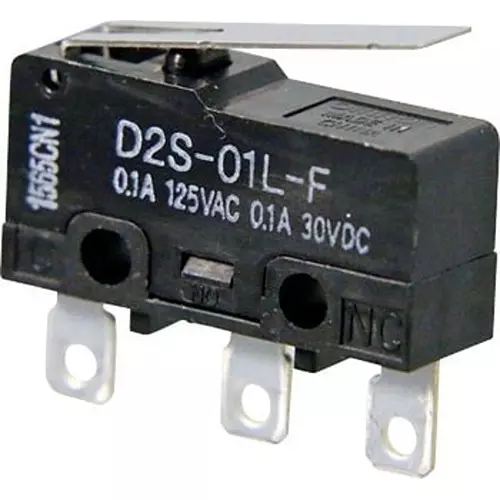

| Type of Product | Subminiature Basic Switch |
| Model No | D2S-01L-F |
| Rated Voltage (V) | AC125/DC30 |
| Monotaro ID | 46550682 |
Type of Product |
Subminiature Basic Switch |
Model No |
D2S-01L-F |
Rated Voltage (V) |
AC125/DC30 |
Monotaro ID |
46550682 |
Mass (g) |
1.6 (Pin push button type) |
Allowable Operating Speed |
0.1 mm to 1m / s (Pin pushbutton type) |
Terminal Type |
Solder terminal |
Actuator Type |
Hinge / lever type |
Withstand Voltage |
Between homopolar terminals: AC1000V 50 / 60Hz 1min Between charged metal part and ground, Between each terminal and non-charged metal part: Between each terminal and non-charged metal part Value when using AC1500V 50 / 60Hz 1min separator |
Mechanical Durability |
30 million operations or more (60 operations / min) |
Minimum Applicable Load |
DC5 V 1 mA |
Inrush current (A) |
(Normally closed circuit) Max. 1, (normally open circuit) Max. 1 |
Electrical Durability |
200,000 operations or more (30 operations / min) |
Operating Humidity Range |
85% RH or less (at +5~+ 35 ° C) |
Protection Class |
IP40 |
Rating |
AC125V/DC30V 0.1A |
Contact Configuration |
1c (single pole double throw type) |
Contact Specifications |
Crossbar |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
Frequency 10 ~ 55Hz, double amplitude 1.5 mm (operating limit position) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25 to +85 60% RH or less (with no icing or condensation) |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (with DC500 V insulation resistance meter) |
