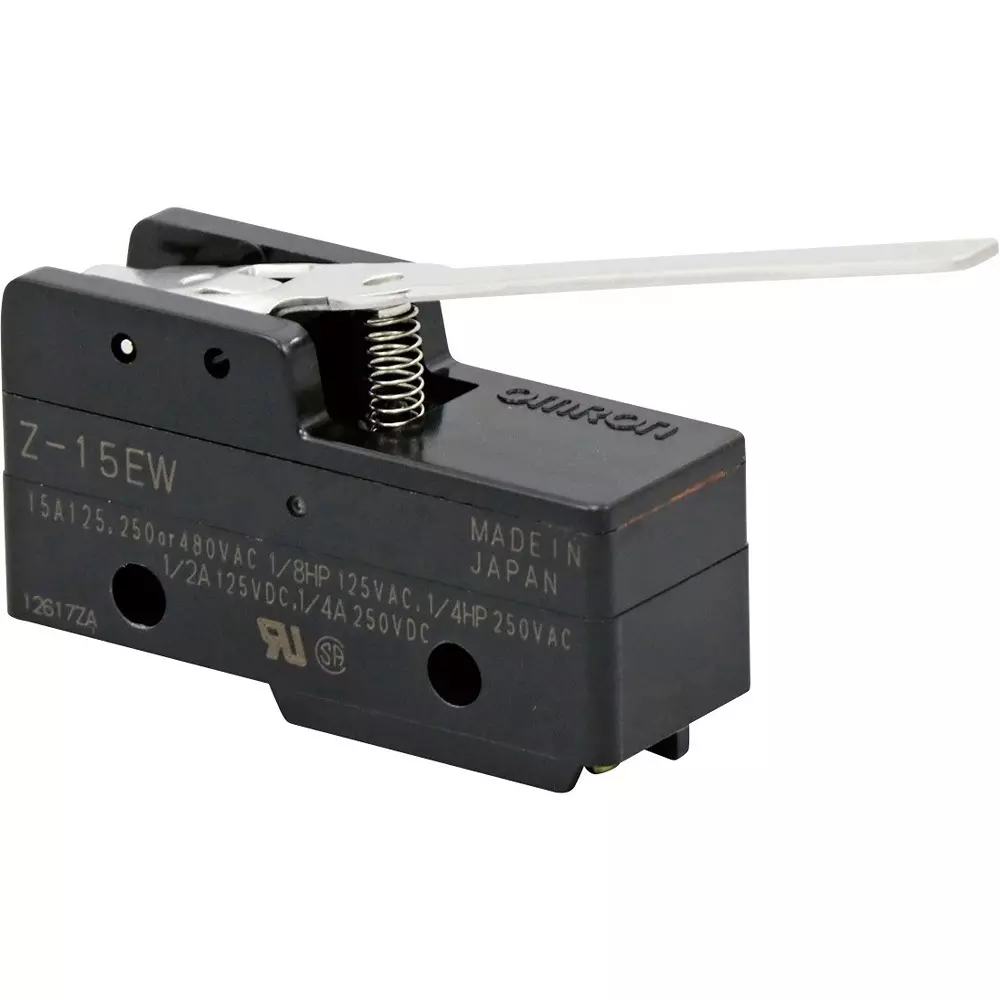

| Type of Product | General Use Basic Switch |
| Model No | Z-15EW |
| Type | High capacity |
| Rated Voltage (V) | AC 125, 250, 500, DC 8, 14, 30, 125, 250 |
Type of Product |
General Use Basic Switch |
Model No |
Z-15EW |
Type |
High capacity |
Rated Voltage (V) |
AC 125, 250, 500, DC 8, 14, 30, 125, 250 |
Monotaro ID |
46491392 |
Mass (g) |
About 22-58 |
Allowable Operating Speed |
0.01 mm to 1 m/s (value of push button) |
Electric Shock Protection Class |
ClassⅠ |
Terminal Type |
Solder Terminal |
Actuator Type |
Hinge lever type (small OF) |
Withstand Voltage |
(Between same pole terminals) AC1500 V 50 / 60Hz 1min, (between charging metal part and ground, between each terminal and non-charging metal part) AC2000V 50 / 60Hz 1min |
Mechanical Durability |
300,000 times or more |
Minimum Applicable Load |
DC 5 V 160 mA |
Electrical Durability |
100,000 times or more |
Protection Class |
IP00 |
Applicable Standard |
UL, CSA, TUV(EN61058-1), CCC(GB14048.5) |
Contact Configuration |
1C |
Shock Resistance |
Up To 1000 m/s² |
Country of Origin |
JAPAN |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55 Hz, double amplitude 1.5 mm (malfunction 1ms or less) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25-80 (no icing) |
Insulation Resistance (MOhm) |
100 mΩ Or More (With DC 500 V Mega) |
Contact Resistance (ohm) |
15 mΩ or Less (initial value) |
