Ships within 19 days
Model No
View
View
View
View

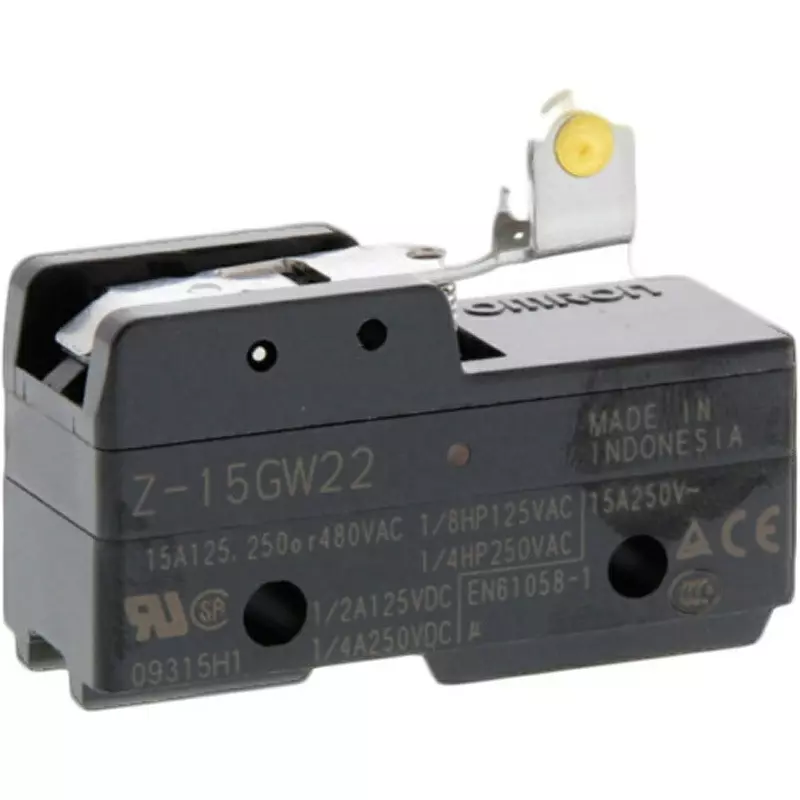

| Type of Product | Basic Switch |
| Model No | Z-15GW22S |
| Dimension | 41.7x49.2x17.45mm |
| Type | Standard |
Type of Product |
Basic Switch |
Model No |
Z-15GW22S |
Dimension |
41.7x49.2x17.45mm |
Type |
Standard |
Rated Voltage (V) |
AC125, 250, 500, DC8, 14, 30, 125, 250 |
Monotaro ID |
35501155 |
Terminal Type |
Soldering Terminals |
Actuator Type |
Hinge, Roller, Short Lever Type |
Withstand Voltage |
Between Terminals Of the Same Polarity: AC 1000 (50/60 Hz) Between Live Metal Parts And Earth, Between Each Terminal And Non-Live Metal Parts: AC 2000 (50/60 Hz) |
Contact Spacing |
0.5 mm |
Protection Class |
General Type (IP00) |
Applicable Standard |
UL, CSA, TUV (EN61058-1), CCC (GB14048.5) |
Lead Wire Length (mm) |
- |
Contact Configuration |
1C |
Classification |
Standard |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
