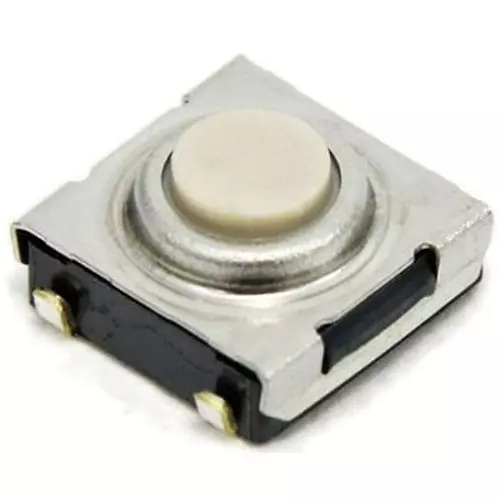

| Type of Product | Tactile Switch |
| Part No | 64-3342-71 |
| Model No | B3SN-3012 |
| Type | 6mm square B3W-3000 series |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Tactile Switch |
Part No |
64-3342-71 |
Model No |
B3SN-3012 |
Type |
6mm square B3W-3000 series |
Color |
(Plunger) Ivory |
Monotaro ID |
39029331 |
Mass (g) |
About 0.2 |
Withstand Voltage |
AC250V 50/60Hz 1min |
Ambient Humidity to Use |
35~85% RH (at +5~+ 35 ° C) |
Operating Force (N) |
1.57±0.49 |
Return Force (N) |
Min 0.29 min |
Rating |
DC3 ~ 24V + 1 ~ 50mA + Resistive load |
Earth Terminal |
None |
Durability |
100,000 times or more |
Contact Configuration |
1a (normally open contact) |
Bouncing |
5 or less |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Pretravel (PT) |
0.25±0.15 mm |
Vibration Resistance (Malfunction) |
10~55Hz double amplitude 1.5 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25~+70 60% RH or less (no freezing or condensation) |
Shock Resistance (m/s²) |
Up to 1000 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (at 250 V DC mega) |
Contact Resistance (ohm) |
100 or less (initial value) (DC5V 1mA energized) |
