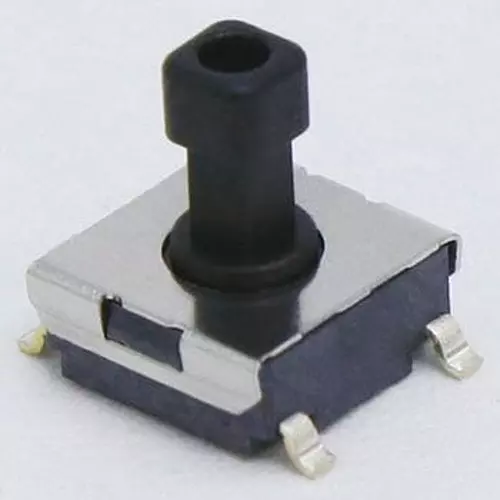

| Type of Product | Tactile Switch |
| Part No | 64-3342-17 |
| Model No | B3FS-1050 |
| Type | 6mm square B3FS-1000 series plunger convex type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Tactile Switch |
Part No |
64-3342-17 |
Model No |
B3FS-1050 |
Type |
6mm square B3FS-1000 series plunger convex type |
Color |
(Plunger) Black |
Dimension (mm) |
6.3x6x7.30 |
Monotaro ID |
46443031 |
Withstand Voltage |
AC250V 50/60Hz 1min |
Ambient Humidity to Use |
35~85% RH (at +5~+ 35 ° C) |
Operating Force (N) |
0.98±0.29 |
Return Force (N) |
Min 0.2 min |
Protection Class |
IEC IP00 |
Rating |
DC3 ~ 24V + 1 ~ 50mA + Resistive load |
Height (mm) |
7.3 |
Durability |
1,000,000 times or more |
Contact Configuration |
1a (normally open contact) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Pretravel (PT) |
0.25(-0.1 to +0.2) mm |
Vibration Resistance (Malfunction) |
10~55Hz double amplitude 1.5 mm |
Switch Operation |
Momentary |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-25~+70 60% RH or less (no freezing or condensation) |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
100 mohm or more (at 100 V DC mega) |
Contact Resistance (ohm) |
100 or less (initial value) |
