Ships within 19 days
Model No
View
View
View
View
| Type of Product | Basic Switch |
| Model No | Z-15EW22-B |

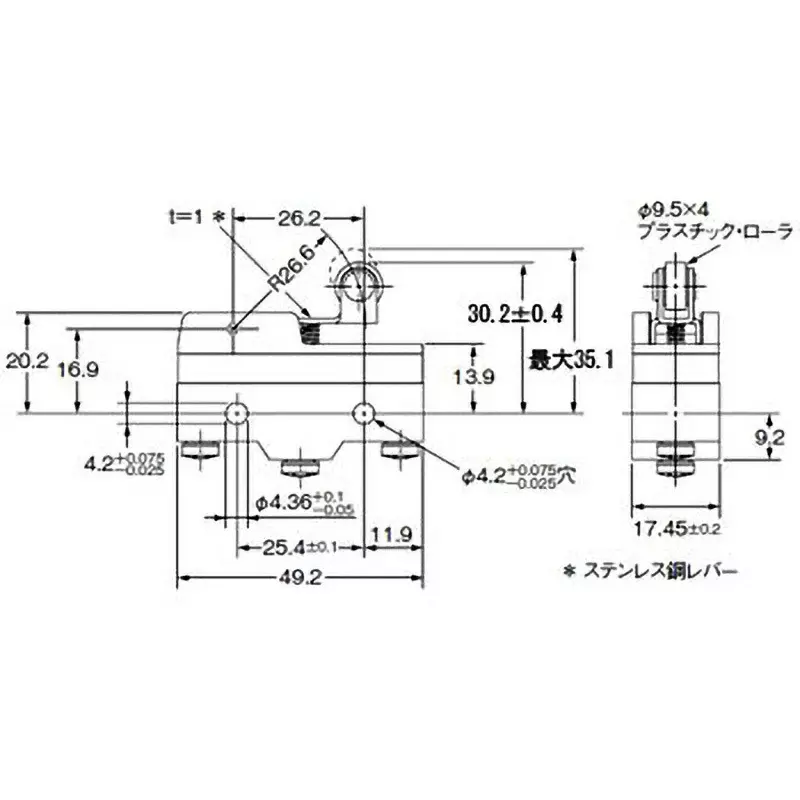

| Dimension | 41.7x49.2x17.45mm |
| Type | High Capacity |
Type of Product |
Basic Switch |
Model No |
Z-15EW22-B |
Dimension |
41.7x49.2x17.45mm |
Type |
High Capacity |
Rated Voltage (V) |
AC125, 250, 500, DC8, 14, 30, 125, 250 |
Monotaro ID |
35501243 |
Mass (g) |
About 36 g |
Terminal Type |
Screw Terminal (Internal Tooth Washer) |
Actuator Type |
Hinge, Roller, Short Lever Type |
Withstand Voltage |
(Between Terminals Of the Same Polarity) 1500 V AC 50/60 Hz 1 Min, (Between Live Metal Parts And Earth, Between Each Terminal And Non-Live Metal Parts) 2000 V AC 50/60 Hz 1 Min |
Protection Class |
General Type (IP00) |
Applicable Standard |
UL, CSA, TUV (EN61058-1), CCC (GB14048.5) |
Lead Wire Length (mm) |
- |
Contact Configuration |
1C |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
